SIZE: DN20-50(3/4''-2'')
Function Description
Used for water,non-causticity liquid appliance hook-up and other water supply pipe line applications.
Easy appliance hook-up F X F connections
Working Temperature:-20℃≤t≤120℃
Nominal Pressure: 1.6MPa
Thread: ISO228/BSPP
Detailed Information

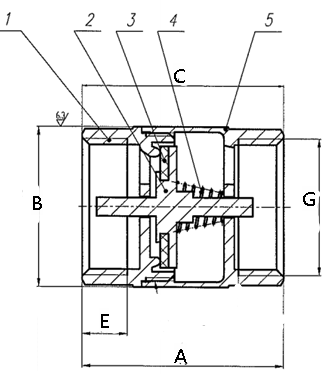

Product Description
| No. | Part Name | Material |
| 1 | Valve cover | Brass |
| 2 | Core | Brass |
| 3 | Gasket | NBR |
| 4 | Spring | Stainless Steel |
| 5 | Body | Brass |
Dimensions
| DN | A | B | C | E | G |
| 20 | 44.6 | 33 | 44.6 | 10 | 3/4 |
| 25 | 49 | 39 | 49 | 11 | 1 |
| 32 | 59.5 | 52 | 59.5 | 14 | 1 1/4 |
| 40 | 73.5 | 66 | 73.5 | 15.5 | 1 1/2 |
| 50 | 79 | 79.5 | 79 | 17 | 2 |
Product Attributes

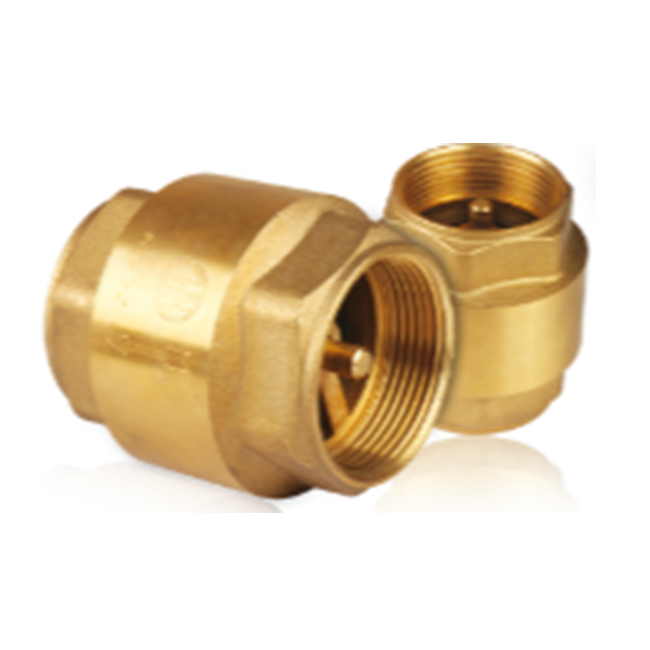

| Item: Vertical check valve | Material: Brass | ||||
| Size: 1/2" - 1" | Surface Treatment: Copper color | ||||
| Brass material: 59-1 or to be customized | Application: water supply | ||||
| Connection Type: F*F oror to be customized | Max. Temp: +100°C | ||||
| Sealing Material: NBR | Working Pressure: 0-1.6Mpa |
