SIZE: DN15-DN50 (1/2"-2")
Function Description
Used for water, non-causticity liquid appliance hook-up and other water supply pipe line applications.
Easy appliance hook-up F X F connections
Working Temperature: -20℃≤t≤120℃
Nominal Pressure: 1.6MPa
Thread: ISO228/BSPP
Detailed Information
Product Description
| No. | Part Name | Material |
| 1 | Bonnet | Brass |
| 2 | Body | Brass |
| 3 | Ball | Brass |
| 4 | Valve seat | PTFE |
| 5 | Stem | Brass |
| 6 | O-ring | NBR |
| 7 | Gland nut | Stainless Steel |
| 8 | Spring lock washer | Stainless Steel |
| 9 | Nut | Stainless Steel |
| 10 | Handle | Carbon steel |

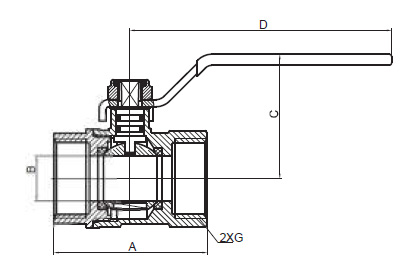

Dimensions
| DN | A | B | C | D | G |
| 15 | 53 | 14 | 41.4 | 98 | 1/2 |
| 20 | 63 | 19 | 44.5 | 98 | 3/4 |
| 25 | 72 | 23.5 | 55 | 110 | 1 |
| 32 | 80 | 30 | 61 | 140 | 1-1/4 |
| 40 | 90.5 | 37 | 66 | 140 | 1-1/2 |
| 50 | 106 | 46.5 | 75 | 155.5 | 2 |
Product Attributes
| Item: Ball Valve | Ball Material: Brass | ||||
| Size: 1/2" - 1" | Valve Basic Body Material: Brass | ||||
| Brass material: 59-1 | Surface Treatment: Nickle plate | ||||
| Connection Type: Female BSP x Female BSP | Application: water supply | ||||
| Handle Material: IRON / AL / Carbon steel | Max. Temp: +120°C | ||||
| Handle Type: Lever handle | Working Pressure: 0-1.6Mpa | ||||
| Stem Type: Fixed ball valve stem | Port: All, ningbo port is better | ||||
| Stem Material: Brass | Features: Full Port for Maximum Flow Rate | ||||
| Seat Material: PTFE | Standards: Parallel Pipe Thread to ISO228/BSPP | ||||
| Body Seal Material: NBR |
