Product Details:
Model Number: 1512
SIZE: DN50-600(2" - 24")
Place of Origin: China
Brand Name: JKLONG/OEM
Payment & Shipping Terms:
Packaging Details: JKLONG standard packing
Delivery Time: to be confirmed
Payment Terms: L/C, D/A, D/P, T/T, OA
Supply Ability: 1000 pcs
Used for water,non-causticity liquid appliance hook-up and other water supply pipe line applications.
Flange connections
Working Temperature: 0℃≤t≤80℃
Nominal Pressure: 1.6MPa
Flange Standard: GB/T17241.6 RF, BS 4504, BS 5163, etc

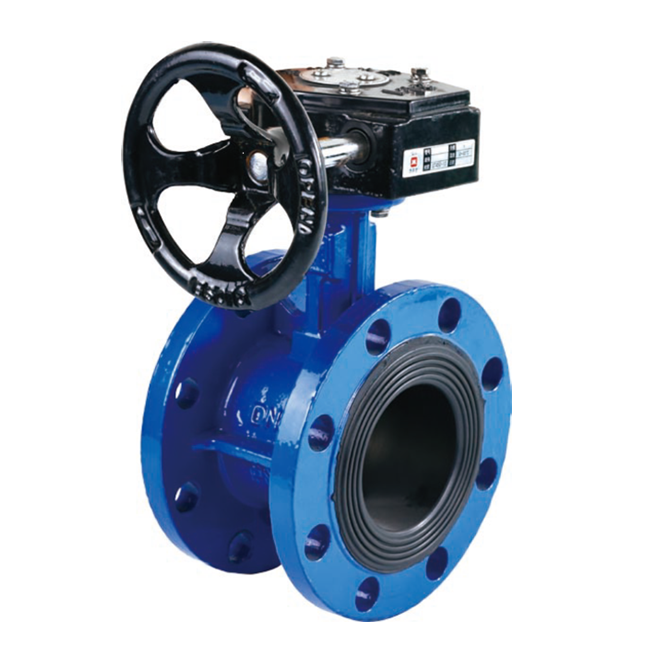

Item: Butterfly Valve
Size: 2" - 24"
Working Temp: 0℃≤t≤80℃
Working Pressure: PN16
Iron Grade: QT450, GGG40
Working Medium: Water
Flange Standard: GB/T17241.6RF, BS 4504, BS 5163, etc
Rated Stroke: 90°

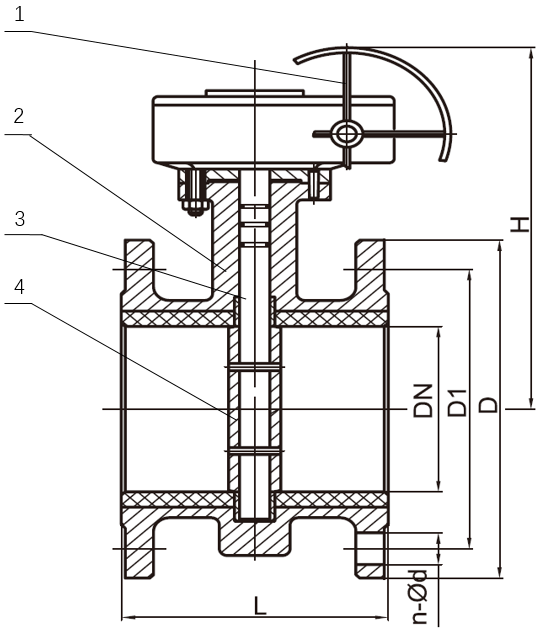

| DN | L | D | D1 | n-Ød | H |
| 50 | 115 | 165 | 125 | 4-19 | 230 |
| 65 | 120 | 185 | 145 | 4-19 | 240 |
| 80 | 121 | 200 | 160 | 8-19 | 245 |
| 100 | 135 | 220 | 180 | 8-19 | 260 |
| 125 | 147 | 250 | 210 | 8-19 | 285 |
| 150 | 148 | 285 | 240 | 8-23 | 325 |
| 200 | 155 | 340 | 295 | 12-23 | 440 |
| 250 | 174 | 405 | 355 | 12-28 | 540 |
| 300 | 190 | 460 | 410 | 12-28 | 590 |
| 350 | 192 | 520 | 470 | 16-28 | 675 |
| 400 | 216 | 580 | 525 | 16-31 | 700 |
| 450 | 330 | 640 | 585 | 20-31 | 730 |
| 500 | 350 | 715 | 650 | 20-34 | 805 |
| 600 | 390 | 840 | 770 | 20-37 | 960 |
Professional fumigation-free plywood pallets for export.
| No. | Part Name | Material |
| 1 | Hand Wheel | Ductile Iron |
| 2 | Bonnet | Ductile Iron |
| 3 | Stem | Carbon Steel |
| 4 | Disc | Ductile Iron+EPDM |
