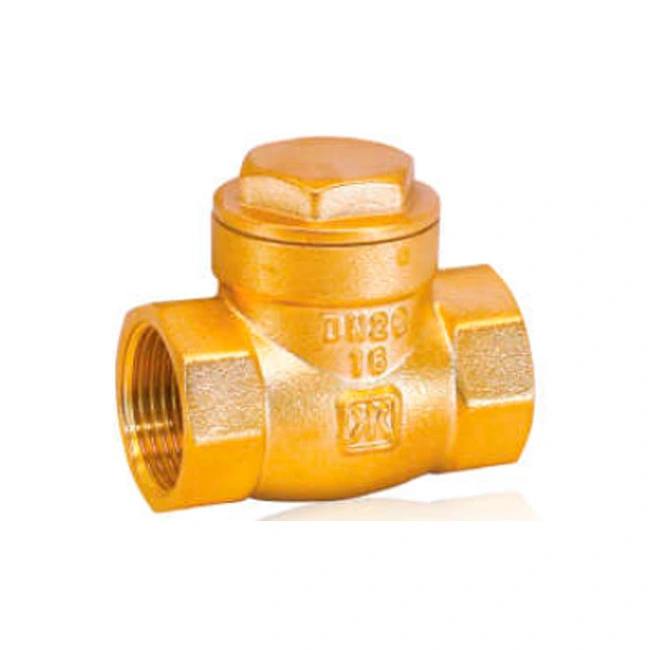

SIZE: DN15-50(1/2''-2'')
Function Description
Used for water, non-causticity liquid appliance hook-up and other water supply pipe line applications.
Easy appliance hook-up F X F connections
Working Temperature: -20℃≤t≤100℃
Nominal Pressure: 1.6MPa
Thread: ISO228/NPT
Detailed Information

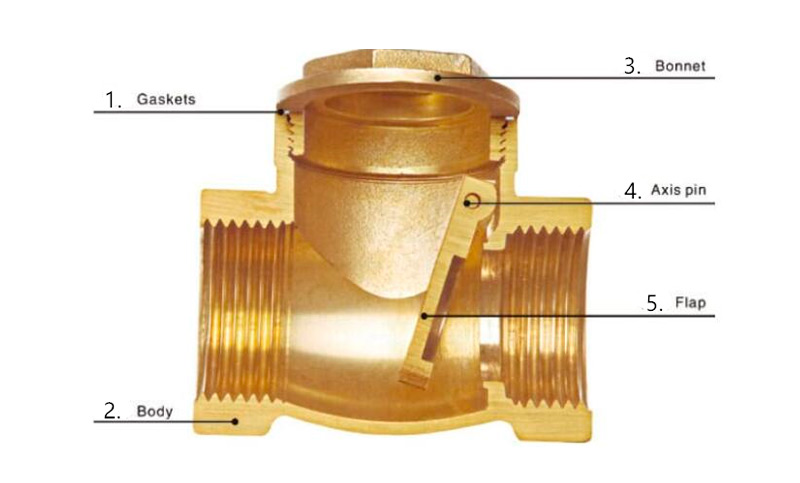

Product Description
| No. | Part Name | Material |
| 1 | Gasket | PTFE |
| 2 | Body | Brass |
| 3 | Bonnet | Brass |
| 4 | Axis Pin | Brass |
| 5 | Flap | Brass |

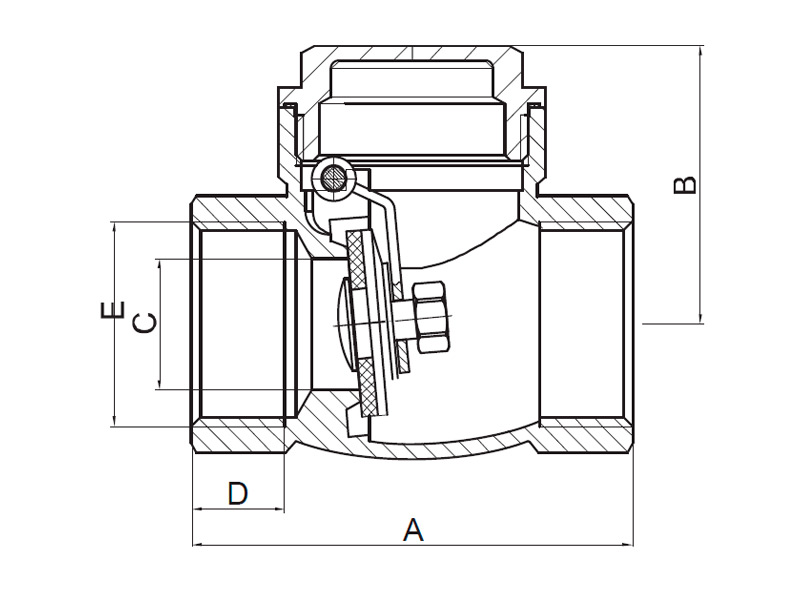

Dimensions
| DN | A | B | C | D | E |
| 15 | 47 | 31.5 | Ø13 | 11 | 1/2 |
| 20 | 57 | 36.5 | Ø17 | 12 | 3/4 |
| 25 | 68 | 43 | Ø23 | 13.5 | 1 |
| 32 | 75 | 52 | Ø29 | 14 | 1 1/4 |
| 40 | 86 | 57.5 | Ø35 | 16 | 1 1/2 |
| 50 | 106 | 68 | Ø45 | 17 | 2 |
Product Attributes
| Item: Ball Swing Check Valve | Material: Brass |
| Size: 1/2" - 1" | Valve Basic Body Material: Brass |
| Brass material: 59-1 or to be customized | Application: water supply |
| Connection Type: F*F or to be customized | Max. Temp: +100°C |
| Seat Material: BRASS | Working Pressure: 0-1.6Mpa |
