Product Details:
Model Number: 1105
SIZE: DN50-600(2" - 24")
Place of Origin: China
Brand Name: TKLONG/OEM
Payment & Shipping Terms:
Packaging Details: JKLONG standard packing
Delivery Time: to be confirmed
Payment Terms: L/C, D/A, D/P, T/T, OA
Supply Ability: 1000 pcs
Used for water,non-causticity liquid appliance hook-up and other water supply pipe line applications.
Flange connections
Working Temperature: 0℃≤t≤80℃
Nominal Pressure: 1.6MPa
Flange Standard: GB/T17241.6 RF, BS 4504, BS 5163, etc

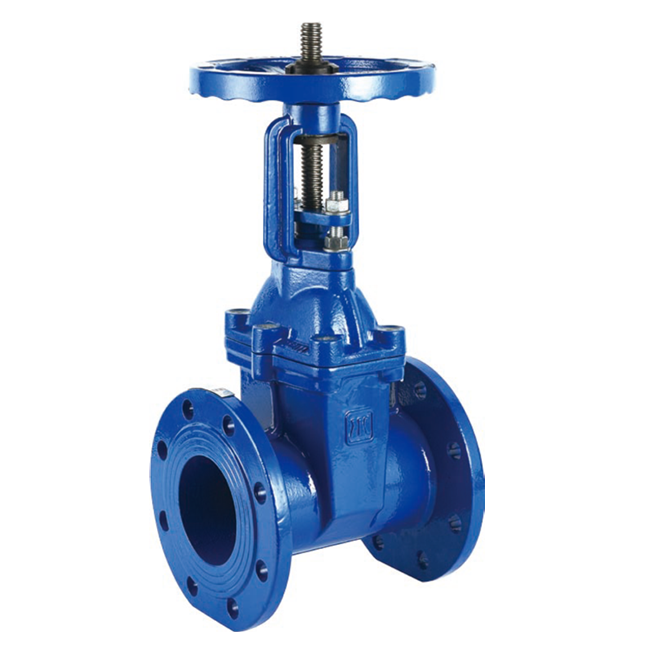

ltem: Gate Valve
Size: 2" - 24"
Working Temp: 0℃≤t≤80℃
Working Pressure: PN16
Iron Grade: QT450, GGG40
Working Medium: water
Flange Standard: GB/T17241.6RF, BS 4504, BS 5163, etc
Rated Stroke: Full Open
| No. | Part Name | Material |
| 1 | Hand Wheel | Ductile Iron |
| 2 | Bonnet | Ductile Iron |
| 3 | Stem | Stainless Steel |
| 4 | Sealing | EPDM |
| 5 | Body | Ductile Iron |
| 6 | Disc | Ductile Iron+EPDM |

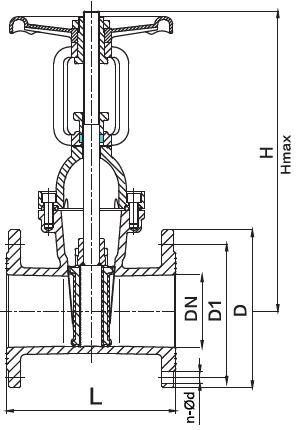

| DN | L | D | D1 | n-Ød | H |
| 50 | 178 | 165 | 125 | 4-19 | 372 |
| 65 | 190 | 185 | 145 | 4-19 | 397 |
| 80 | 203 | 200 | 160 | 8-19 | 430 |
| 100 | 229 | 220 | 180 | 8-19 | 520 |
| 125 | 254 | 250 | 210 | 8-19 | 706 |
| 150 | 267 | 285 | 240 | 8-23 | 731 |
| 200 | 292 | 340 | 295 | 12-23 | 936 |
| 250 | 330 | 405 | 355 | 12-28 | 1132 |
| 300 | 356 | 460 | 410 | 12-28 | 1309 |
| 350 | 381 | 520 | 470 | 16-28 | 1650 |
| 400 | 406 | 580 | 525 | 16-31 | 1780 |
| 450 | 432 | 640 | 585 | 20-31 | 1920 |
| 500 | 457 | 715 | 650 | 20-34 | 2100 |
| 600 | 508 | 840 | 770 | 20-37 | 2305 |
Professional fumigation-free plywood pallets for export.
Professional Valve Design Team for Your Personalized Needs!
