Product Details:
Model Number: 1706
SIZE: DN50-200(2''-8'')
Place of Origin: China
Brand Name: JKLONG/OEM
Payment & Shipping Terms:
Packaging Details: JKLONG standard packing
Delivery Time: to be confirmed
Payment Terms: L/C, D/A, D/P, T/T, OA
Supply Ability: 1000 pcs
Used for water, non-causticity liquid appliance hook-up and other water supply pipe line applications.
Flange connections
Working Temperature: 0℃≤t≤80℃
Nominal Pressure: 1.6MPa
Flange Standard: GB/T17241.6 RF, BS 4504, BS 5163, etc.
Item: Y Strainer
Size: 2" - 24"
Working Temp: 0℃≤t≤80℃
Working Pressure: PN16
Iron Grade: QT450, GGG40
Working Medium: Water
Flange Standard: GB/T17241.6 RF, BS 4504, BS 5163, etc
Rated Stroke: 90°

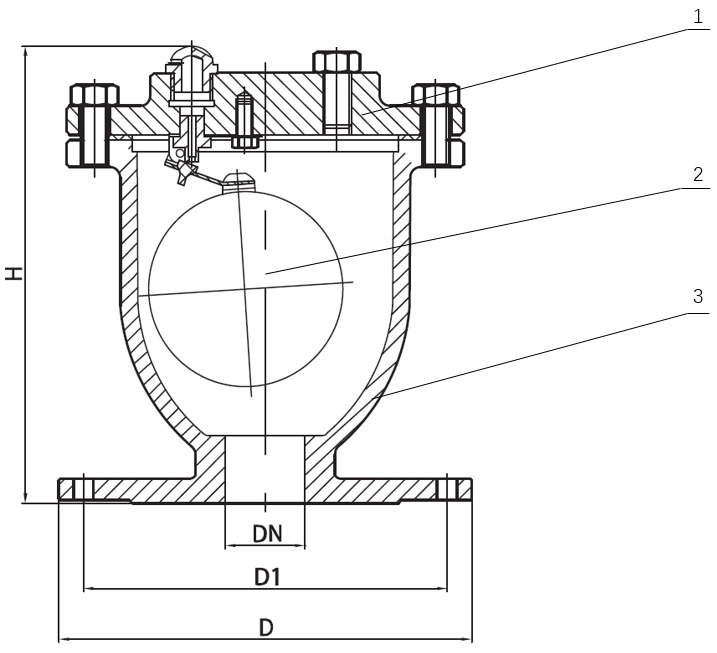

| No. | Part Name | Material |
| 1 | Bonnet | Ductile Iron |
| 2 | Ball | Stainless Steel |
| 3 | Body | Ductile Iron |
| DN | H | D | D1 | n-Ød |
| 50 | 280 | 160 | 125 | 4-14 |
| 80 | 300 | 195 | 160 | 4-18 |
| 100 | 330 | 215 | 180 | 8-18 |
| 125 | 360 | 245 | 210 | 8-23 |
| 150 | 390 | 280 | 240 | 8-23 |
| 200 | 440 | 335 | 295 | 12-23 |
1. Professional fumigation-free plywood pallets for export.
