Product Details:
Model Number: 1413
SIZE: DN50-400(2''-16'')
Place of Origin: China
Brand Name: JKLONG/OEM
Payment & Shipping Terms:
Packaging Details: JKLONG standard packing
Delivery Time: to be confirmed
Payment Terms: L/C, D/A, D/P, T/T, OA
Supply Ability: 1000 pcs
Used for water, non-causticity liquid appliance hook-up and other water supply pipe line applications.
Flange connections
Working Temperature: 0℃≤t≤80℃
Nominal Pressure: 1.6MPa
Flange Standard: GB/T17241.6 RF, BS 4504, BS 5163, etc.

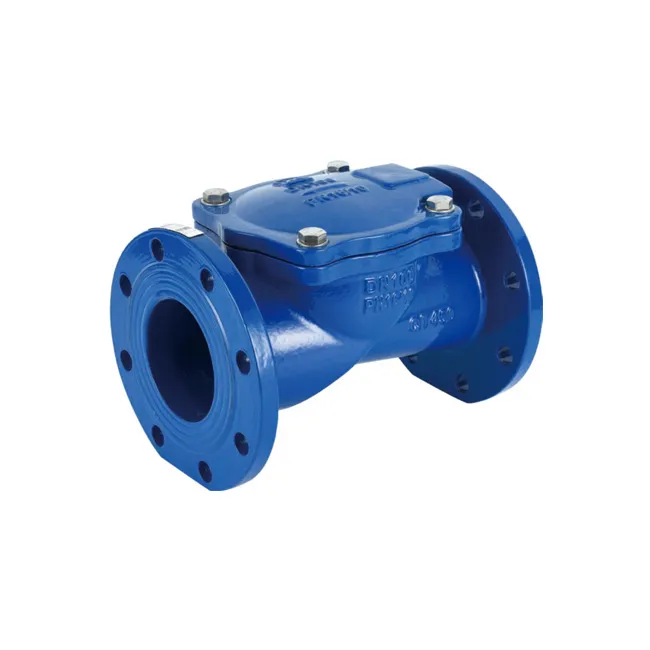

Item: Check Valve
Size: 2" - 16"
Working Temp: 0℃≤t≤80℃
Working Pressure: PN16
Iron Grade: QT450, GGG40
Working Medium: Water
Flange Standard: GB/T17241.6 RF, BS 4504, BS 5163, etc
Rated Stroke: 90°

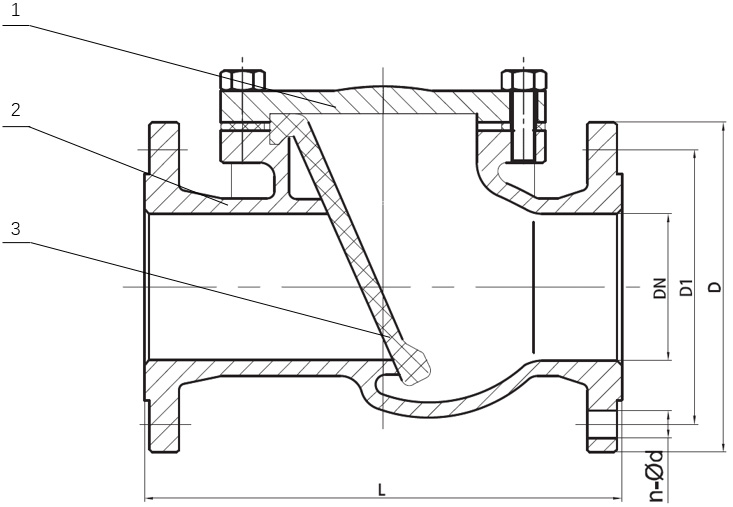

| No. | Part Name | Material |
| 1 | Bonnet | Ductile Iron |
| 2 | Body | Ductile Iron |
| 3 | Disc | Carbon Steel+EPDM |
| DN | L | D | D1 | n-Ød |
| 50 | 204 | 165 | 125 | 4-19 |
| 65 | 225 | 185 | 145 | 4-19 |
| 80 | 245 | 200 | 160 | 8-19 |
| 100 | 292 | 220 | 180 | 8-19 |
| 125 | 300 | 250 | 210 | 8-19 |
| 150 | 358 | 285 | 240 | 8-23 |
| 200 | 490 | 340 | 295 | 12-23 |
| 250 | 622 | 405 | 355 | 12-28 |
| 300 | 700 | 460 | 410 | 12-28 |
| 350 | 787 | 520 | 470 | 16-28 |
| 400 | 914 | 580 | 525 | 16-31 |
1. Professional fumigation-free plywood pallets for export.
