Product Details:
Model Number: 1501
SIZE: DN50-600(2" - 24")
Place of Origin: China
Brand Name: JKLONG/OEM
Payment & Shipping Terms:
Packaging Details: JKLONG standard packing
Delivery Time: to be confirmed
Payment Terms: L/C, D/A, D/P, T/T, OA
Supply Ability: 1000 pcs
Used for water,non-causticity liquid appliance hook-up and other water supply pipe line applications.
Flange connections
Working Temperature: 0℃≤t≤80℃
Nominal Pressure: 1.6MPa
Flange Standard: GB/T17241.6 RF, BS 4504, BS 5163, etc

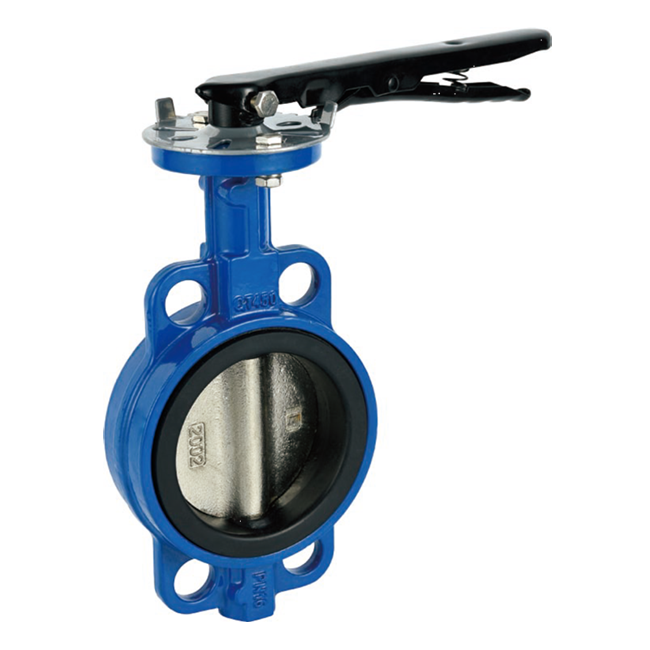

Item: Butterfly Valve
Size: 2" - 24"
Working Temp: 0℃≤t≤80℃
Working Pressure: PN16
Iron Grade: QT450, GGG40
Working Medium: Water
Flange Standard: GB/T17241.6RF, BS 4504, BS 5163, etc
Rated Stroke: 90°

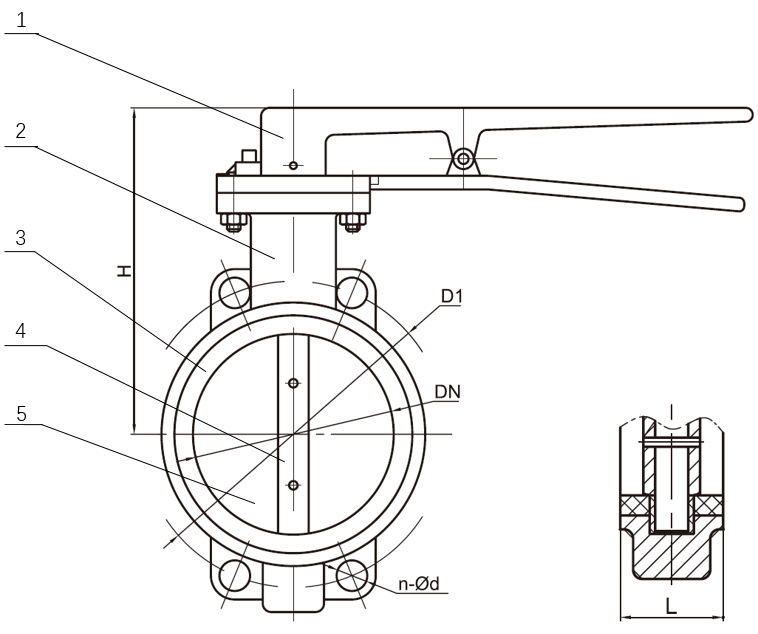

| No. | Part Name | Material |
| 1 | Hand Lever | Carbon Steel |
| 2 | Bonnet | Ductile Iron |
| 3 | Sealing | EPDM |
| 4 | Stem | Carbon Steel |
| 5 | Disc | Ductile Iron / SS304 |
| DN | L | D1 | n-Ød | H |
| 50 | 43 | 125 | 4-19 | 147 |
| 65 | 46 | 145 | 4-19 | 152 |
| 80 | 46 | 160 | 8-19 | 165 |
| 100 | 52 | 180 | 8-19 | 172 |
| 125 | 56 | 210 | 8-19 | 195 |
| 150 | 56 | 240 | 8-23 | 204 |
| 200 | 64 | 340 | 12-23 | 410 |
| 250 | 68 | 405 | 12-28 | 450 |
| 300 | 78 | 460 | 12-28 | 480 |
| 350 | 78 | 520 | 16-28 | 490 |
| 400 | 102 | 580 | 16-31 | 580 |
| 450 | 114 | 640 | 20-31 | 610 |
| 500 | 127 | 715 | 20-34 | 650 |
| 600 | 154 | 840 | 20-37 | 700 |
Professional fumigation-free plywood pallets for export.
Professional Valve Design Team for Your Personalized Needs!
