Size: DN15
Function Description
Used for water, non-causticity liquid appliance.
Nominal Pressure:1.5Mpa;
Working Temperature: 0℃≤t≤80℃
Thread Stardard: BSP, NPT, etc.
Opening/closing test: 10000times
Detailed Information

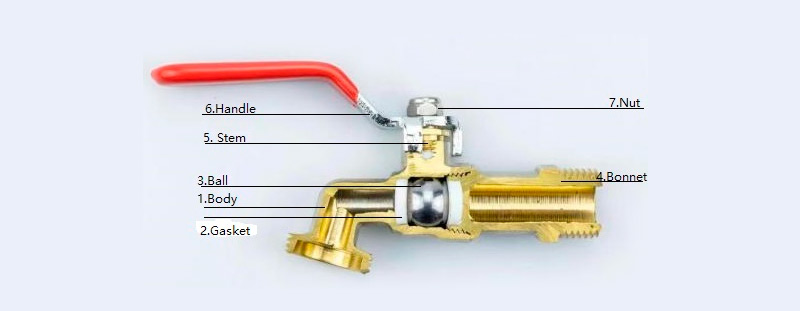

Product Description
| No. | Part Name | Material |
| 1 | Body | Brass |
| 2 | Gasket | PTFE |
| 3 | Ball | Lead Brass |
| 4 | Bonnet | Brass |
| 5 | Stem | Brass |
| 6 | Handle | Steel |
| 7 | Nut | Steel |

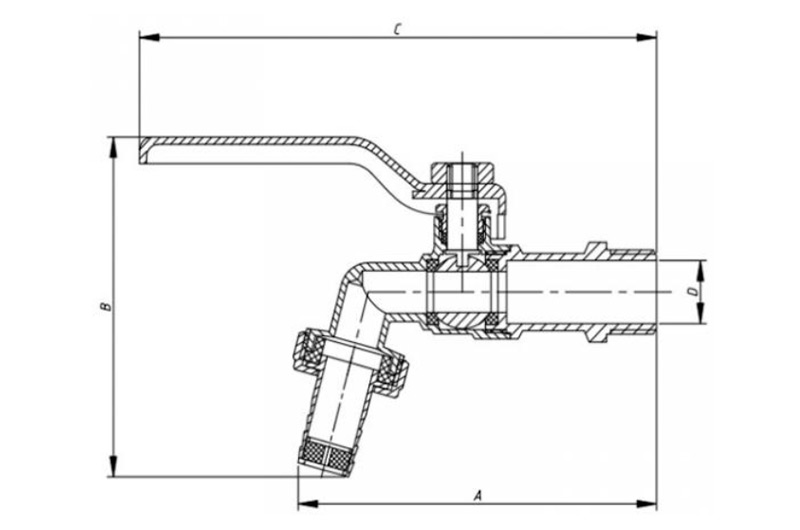

Dimensions
| DN | A | B | C | D |
| 15 | 93mm | 54 | 65.1 | 15mm |
Product Attributes
| Item: Brass Ball Bibcock | Materials: Brass | |||
| Size: 1/2'' | Nickel plated | |||
| Brass Materials: Hpb58-2A | Max. Temp: 80°C | |||
| or to be customized. | 0-1.6Mpa | |||
| Sealling Material: PTFE | ||||
Packaging
