Product Details:
Model Number: 5236
Size: DN15(1/2")
Place of Origin: China
Brand Name: JKL/OEM
Payment & Shipping Terms:
Packaging Details: JKLONG standard packing
Delivery Time: to be confirmed
Payment Terms: L/C, D/A. D/P, T/T
Supply Ability: 100,000 pcs

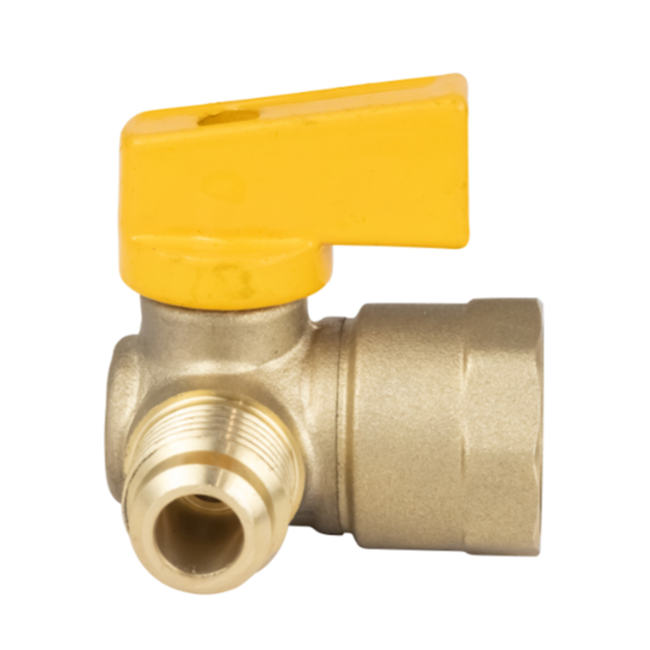

Item: Gas Ball Valve
Size: 1/4"-1"
Working Temp: -20℃≤t≤60℃
Working Pressure: MOP5-20
connection Type: Female X FemalThread
Sealing Type: double O-rings
Handle Type: butterfly
Features:Full Port for Maximum Flow Rate
Thread Standards: ISO228/NPT
Brass Grade: HPb59-1/CW617N etc.
Working Medium: Natural Gas,LPG
Certification: EN331, CE
Opening/closing Test: 10,000 times
Stem Material: Brass
O-ring Material: NBR
Seat Material: PTFE
Opening/closing Test: 10,000 times
Handle Material: Carbon steel withchrome plating

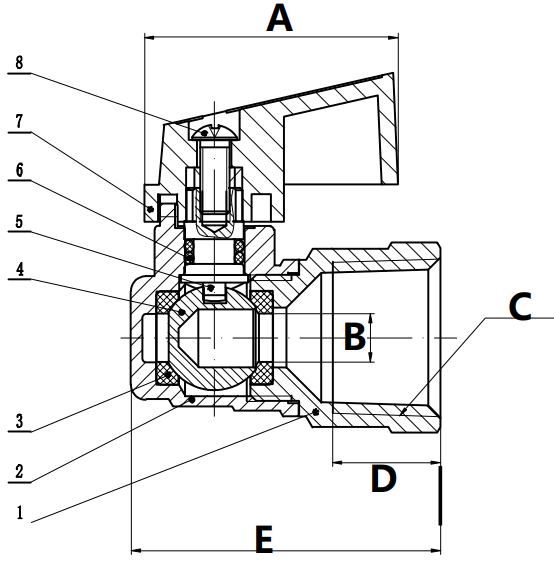

| No. | Part Name | Material |
| 1 | Cap | Brass |
| 2 | Body | Brass |
| 3 | Gasket | PTFE |
| 4 | Ball | Brass |
| 5 | Stem | Brass |
| 6 | O-ring | NBR |
| 7 | Handle | Aluminum |
| 8 | Screw | SS 304 |
| DN | A | B | C | D | E |
| 15 | 34 | 6.5 | NPT 1/2 | 14.5 | 41.5 |
1. JKL logo forged in valve body.
2. JKL logo stamped or printed on handwheel.
3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
4. PE plastic ECO bag.
5. Product spec. label sticked on the side of master carton.
6. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
7. Professional fumigation-free plywood pallets for export.
Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.
Q: What is your MOQ?
A: We have no MOQ for JKL brand stock.
Q: Can you accept OEM?
A: OEM is acceptable.
Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
