Product Details:
Model Number: 51007
Size: DN15-54
Place of Origin: China
Brand Name: JKL/OEM
Payment & Shipping Terms:
Packaging Details: JKLONG standard packing
Delivery Time: to be confirmed
Payment Terms: L/C, D/A, D/P, T/T, OA
Supply Ability: 100,000 pcs
• Nominal Pressure: 1.6MPa
• Working Temperature: -20℃≤t≤110℃
• Working Medium: Water, Non-causticity liquid
• M-Profile Press

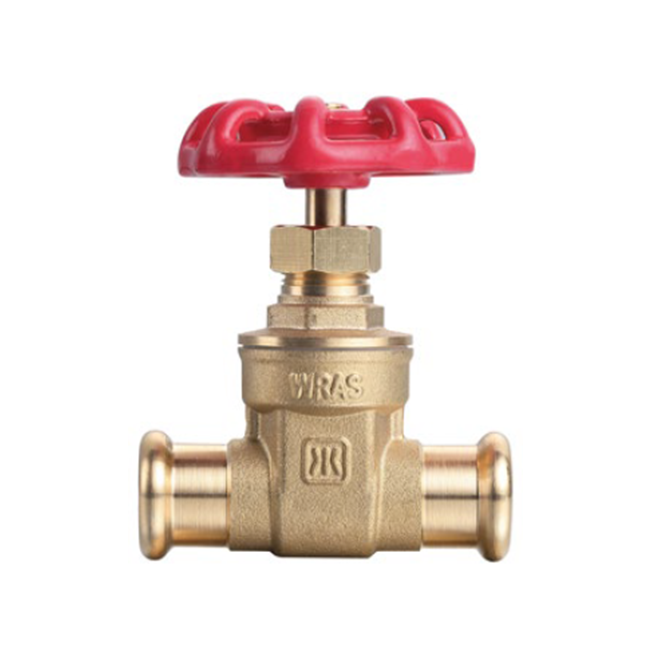

Item: Gate Valve
Size: 15mm-54mm
Working Temp: -20℃≤t≤110℃
Working Pressure: PN16
Connection Type: Press-fit
Sealing Type: Packing
Handle Type: handwheel
Features: Full Port for Maximum Flow Rate
Nut: Brass
Brass Grade: CW617N/CW602N etc.
Working Medium: Water
Press Standards: M-Profile
Opening/closing Test: 10,000 times
Body Material: Brass
Wedge Disc Material: Brass
Packing Material: No
Opening/closing Test: 10,000 times
Handle Material: Q235

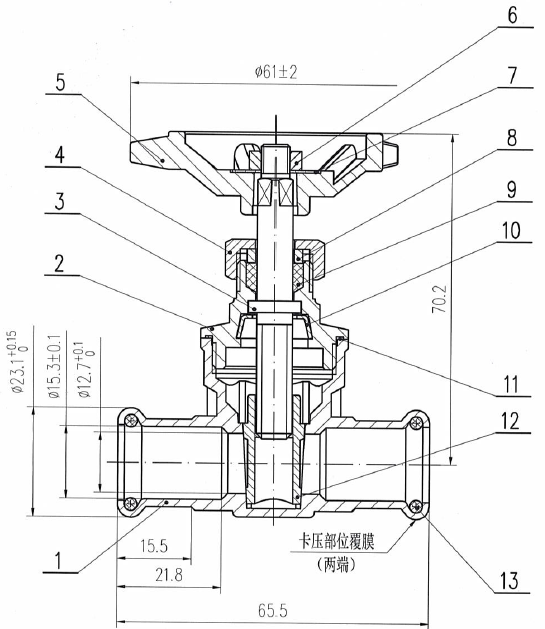

| No. | Part Name | Material |
| 1 | Body | Brass |
| 2 | Bonnet | Brass |
| 3 | Stem | Brass |
| 4 | Gland Nut | Brass |
| 5 | Handle | Aluminium Alloy |
| 6 | Nut | Brass |
| SIZE | L | H |
| 15 | 65.5 | 70.7 |
| 22 | 72 | 80.3 |
| 28 | 78.5 | 93.3 |
| 35 | 87 | 117.5 |
| 42 | 112 | 125.5 |
| 54 | 127 | 152.5 |
| Item: Press-fit gate valve | Valve Bonnet Material: Brass |
| Size: 15mm-54mm | Valve Stem Material: Brass |
| Brass material: CW617N/CW602N | Surface Treatment: Copper color |
| Connection Type: Press-fit | Application: Water supply |
| Handle Material: Aluminium Alloy | Max. Temp: +110°C |
| Handle Type: Wheelhand | Working Pressure: 0-1.6Mpa |
| Stem Type: Blowout Proof | Port: All, Ningbo port is better |
| Body Material: Brass | Features: Full Port for Maximum Flow Rate |
| Opening/closing Test: 10,000times | Press Standards: M-Profile |
| Nut: Brass |
1. JKL logo forged in valve body.
2. JKL logo stamped or printed on handwheel.
3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
4. PE plastic ECO bag.
5. Product spec. label sticked on the side of master carton.
6. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
7. Professional fumigation-free plywood pallets for export.
Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.
Q: What is your MOQ?
A: We have no MOQ for JKL brand stock.
Q: Can you accept OEM?
A: OEM is acceptable.
Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
