Product Details:
Model Number: 705
Size: 15mm-25mm
Place of Origin: China
Brand Name: JKL/OEM
Payment & Shipping Terms:
Packaging Details: JKLONG standard packing
Delivery Time: to be confirmed
Payment Terms: L/C, D/A, D/P, T/T, OA
Supply Ability: 100,000 pcs
Nominal Pressure: 1.6MPa
Working Temperature: -20℃≤t≤110℃
Working Medium: Water, Non-causticity Liquid
Parallel Pipe Thread to ISO228
Item: Brass Air Vent
Size: 15mm-25mm
Working Temp: -20℃≤t≤110℃
Working Pressure: PN16
Connection Type: Male Thread
Sealing Type: O-ring
Opening/closing Test: 10,000times
Brass Grade: CW617N/CW602N etc.
Working Medium: Water, Non-causticity Liquid
Thread Standards: ISO228/BSP/NPT
Opening/closing Test: 10,000times
Body Material: Brass
Seat Material: Brass
O-ring Material: NBR

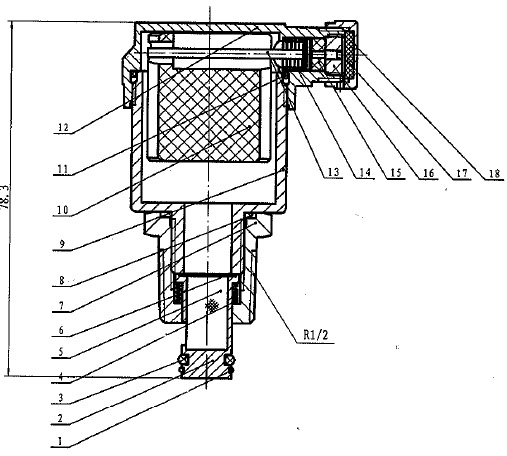

| No. | Part Name | Material |
| 1 | Stop Collar | 1Cr18Ni9Ti |
| 2 | Slide Bushing | Brass |
| 3 | O-ring | NBR |
| 4 | Spring | 1Cr18Ni9Ti |
| 5 | Mesh | 1Cr18Ni9Ti |
| 6 | Stop Wafer | Brass |
| 7 | Seat | Brass |
| 8 | O-ring | NBR |
| 9 | Valve Body | Brass |
| SIZE | H |
| 15 | 78.3 |
| 20 | 77.5 |
| 25 | 77.5 |
| Item: Brass Air Vent | Application: Water supply |
| Size: 15mm-25mm | Max. Temp: +110°C |
| Brass material: CW617N/CW602N | Working Pressure: 0-1.6Mpa |
| Connection Type: Male Thread | Port: All, Ningbo port is better |
| Valve Body Material: Brass | Features: Full Port for Maximum Flow Rate |
| Valve Bonnet Material: Brass | Standards: Parallel Pipe Thread to ISO228 |
| Surface Treatment: Copper color | Opening/closing Test: 10,000times |
1. JKL logo forged in valve body.
2. JKL logo stamped or printed on handwheel.
3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
4. PE plastic ECO bag.
5. Product spec. label sticked on the side of master carton.
6. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
7. Professional fumigation-free plywood pallets for export.
Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.
Q: What is your MOQ?
A: We have no MOQ for JKL brand stock.
Q: Can you accept OEM?
A: OEM is acceptable.
Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
