Product Details:
Model Number: 52032
Size: DN15(1/2")
Place of Origin: China
Brand Name: JKL/OEM
Payment & Shipping Terms:
Packaging Details: JKLONG standard packing
Delivery Time: to be confirmed
Payment Terms: L/C, D/A, D/P, T/T, OA
Supply Ability: 100,000 pcs
Used for water,non-causticity liquid appliance hook-up and other water supply pipe line applications.
Easy appliance hook-up F X F connections
Working Temperature:0℃≤t≤100℃
Nominal Pressure: 1.6MPa/2.0MPa
Parallel Pipe Thread to ISO228 or NPT
Item: Ball Valve
Size: 1/2"
Working Temp: 0℃≤t≤100℃
Working Pressure: PN16
Connection Type: Female X Female Thread
Sealing Type: Double O-Rings
Handle Type: Butterfly
Features: Full Port for Maximum Flow Rate
Brass Grade: CW617N,HPb59-1 etc.
Working Medium: Water
Thread Standards: ISO228/BSP/NPT
Opening/closing Test: 5,000 times
Stem Materia: Brass
O-Ring Material: NBR
Packing Material: PTFE
Opening/closing Test: 5,000 times

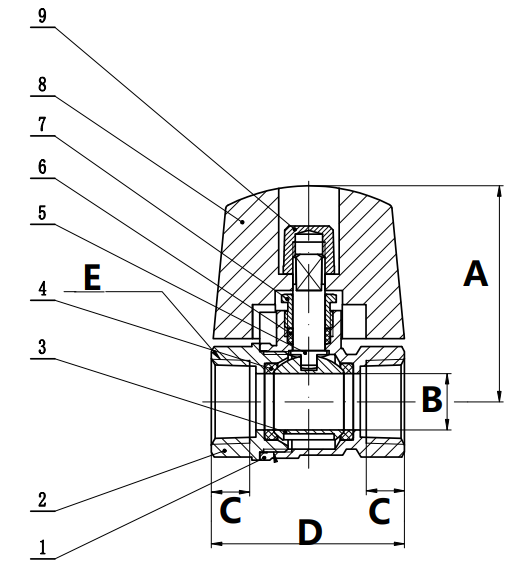

| No. | Part Name | Material |
| 1 | Body | Brass |
| 2 | Bonnet | Brass |
| 3 | Ball | Brass |
| 4 | Sealing Ring | PTFE |
| 5 | Stem | Brass |
| 6 | Packing | PTFE |
| 7 | Gland nut | Brass |
| 8 | Handle | Aluminum |
| 9 | Nut | Iron |
| DN | A | B | C | D | E |
| 15 | 53.7 | 14 | 9.5 | 48 | NPT 1/2 |
| Item: Ball Valve | Ball Material: Brass |
| Size: 1/2" | Valve Basic Body Material: Brass |
| Brass material:CW617N,HPb59-1 | Surface Treatment: brass color/nickle plating |
| Connection Type: Thread Female BSP x Female | Application: water supply |
| Handle Material: IRON / AL / Carbon steel | Max. Temp: +100°C |
| Handle Type: Butterfly handle | Working Pressure: 0-1.6Mpa |
| Stem Type: Fixed ball valve stem | Port: All, ningbo port is better |
| Stem Material: Brass | Features: Full Port for Maximum Flow Rate |
| Seat Material: PTFE | Standards: Parallel Pipe Thread to ISO228/NPT |
| Body Seal Material: NBR |
1. JKL logo forged in valve body.
2. JKL logo stamped or printed on handwheel.
3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
4. PE plastic ECO bag.
5. Product spec. label sticked on the side of master carton.
6. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
7. Professional fumigation-free plywood pallets for export.
Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.
Q: What is your MOQ?
A: We have no MOQ for JKL brand stock.
Q: Can you accept OEM?
A: OEM is acceptable.
Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
