Product Details:
Model Number: 5429
Size: DN15-50(1/2"-2")
Place of Origin: China
Brand Name: JKL/OEM
Payment & Shipping Terms:
Packaging Details: JKLONG standard packing
Delivery Time: to be confirmed
Payment Terms: L/C, D/A, D/P, T/T, OA
Supply Ability: 100,000 pcs
Used for water
Easy appliance hook-up F X F connections
Working Temperature:-10℃≤t≤100℃
Nominal Pressure: 1.6MPa
Parallel Pipe Thread to ISO228
Item: Check Valve
Size: 1/2"
Working Temp: -10℃≤t≤100℃
Working Pressure: PN16
connection Type: Female NPT Thread
Sealing Type: O-Ring
Brass Grade: HPb58-2A/HPb59-1 etc.
Working Medium: Water
Thread Standards: ISO228/BSP/NPT
Opening/closing Test: 10,000 times
Stem Material: Brass
O-Ring Material: NBR

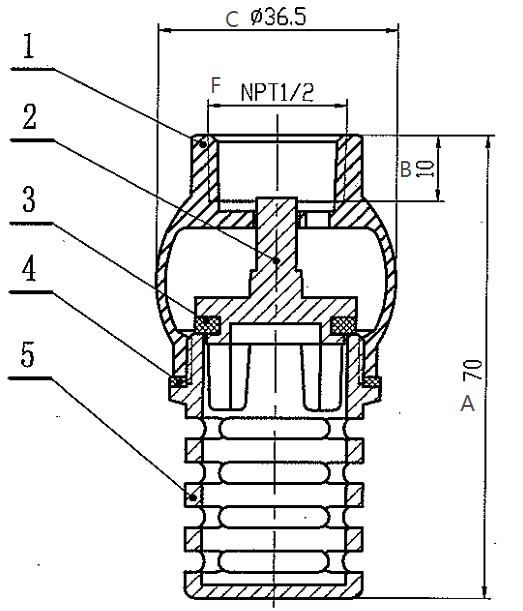

| NO | Part Name | Material |
| 1 | Body | Brass |
| 2 | Disc | Brass |
| 3 | Gasket | NBR |
| 4 | Gasket | Red steel paper |
| 5 | Filter net | Brass |
| DN | A(mm) | B(mm) | C | F | Weight/g |
| 15 | 70 | 10 | φ36.5 | NPT1/2 | 140 |
| 20 | 75.5 | 9.5 | φ42 | NPT3/4 | 189 |
| 25 | 77.5 | 11.5 | φ45.6 | NPT1 | 222 |
| 32 | 85.5 | 12.5 | φ56 | NPT1 1/4 | 387 |
| 40 | 98 | 13.5 | φ60.5 | NPT1 1/2 | 521 |
| 50 | 114.5 | 15.5 | φ78 | NPT2 | 734 |

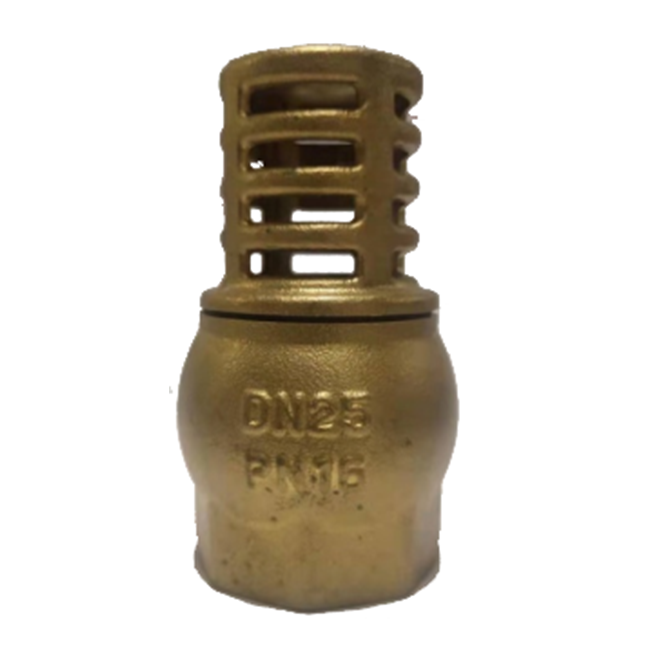

| Item: FOOT VALVE | Weight: g |
| Size: 1/2"-2'' | Valve Basic Body Material: Brass |
| Brass material: HPb58-2A | Surface Treatment: Copper color |
| Connection Type: F NPT Thread | Application: water |
| Working Pressure: 0-1.6Mpa | Max. Temp: 100°C |
| Port: All, ningbo port is better | Features: Full Port for Maximum Flow Rate |
| Body Sealing Material: NBR | Standards: Parallel Pipe Thread to ISO228 |
1. JKL logo forged in valve body.
2. JKL logo stamped or printed on handwheel.
3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
4. PE plastic ECO bag.
5. Product spec. label sticked on the side of master carton.
6. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
7. Professional fumigation-free plywood pallets for export.
Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.
Q: What is your MOQ?
A: We have no MOQ for JKL brand stock.
Q: Can you accept OEM?
A: OEM is acceptable.
Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
