SIZE: DN15-DN50 (1/2"-2")
Function Description
Used for water, non-causticity liquid appliance hook-up and other water supply pipe line applications.
Easy appliance hook-up F X F connections
Working Temperature: -20℃≤t≤120℃
Nominal Pressure: 1.6MPa
Thread: ISO228/BSPP
Detailed Information
Product Description

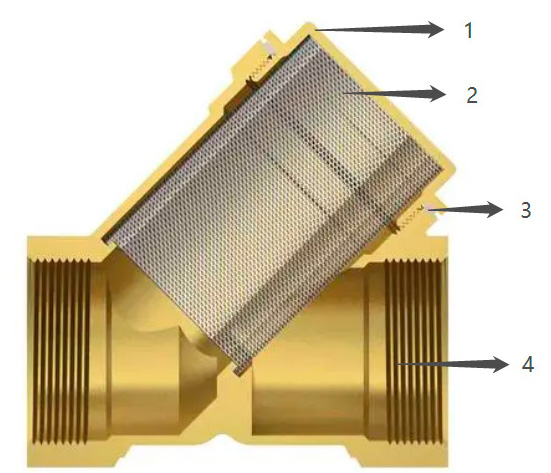

| No. | Part Name | Material |
| 1 | End cap | Brass |
| 2 | Filter | SS304 |
| 3 | Gasket | PTFE |
| 4 | Body | Brass |

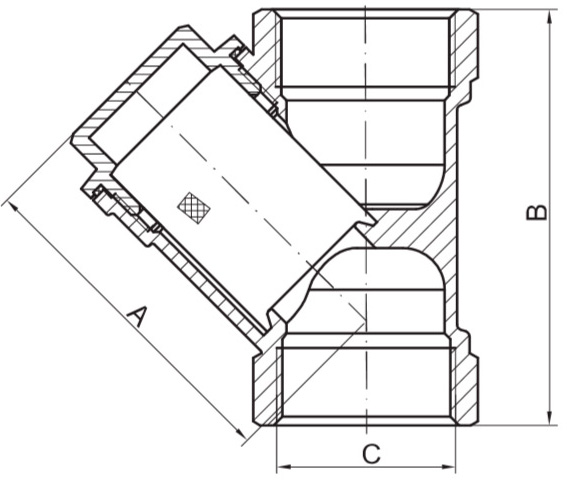

Dimensions
| DN | A | B | C |
| 15 | 46.5 | 57 | 1/2 |
| 20 | 54 | 67 | 3/4 |
| 25 | 66 | 77.5 | 1 |
| 32 | 76 | 90 | 1-1/4 |
| 40 | 85 | 108 | 1-1/2 |
| 50 | 105 | 125 | 2 |
Product Attributes
| Item: Ball Valve | Ball Material: Brass | ||||
| Size: 1/2" - 1" | Valve Basic Body Material: Brass | ||||
| Brass material: 59-1 | Surface Treatment: Copper color | ||||
| Connection Type: Female BSP x Female BSP | Application: water supply | ||||
| Handle Material: IRON / AL / Carbon steel | Max. Temp: +120°C | ||||
| Handle Type: Lever handle | Working Pressure: 0-1.6Mpa | ||||
| Stem Type: Fixed ball valve stem | Port: All, ningbo port is better | ||||
| Stem Material: Brass | Features: Full Port for Maximum Flow Rate | ||||
| Seat Material: PTFE | Standards: Parallel Pipe Thread to ISO228/NPT | ||||
| Body Seal Material: NBR |
