SIZE: 12mm-28mm
Function Description
Used for water,non-causticity liquid appliance hook-up and other water supply pipe line applications.
Easy appliance hook-up F X F connections
Working Temperature:-20℃≤t≤120℃
Nominal Pressure: 3.0MPa
Thread: EN1254
Detailed Information
Product Description
| No. | Part Name | Material |
| 1 | Bonnet | Brass |
| 2 | Body | Brass |
| 3 | Ball | Brass |
| 4 | Valve seat | PTFE |
| 5 | Stem | Brass |
| 6 | O-ring | NBR |
| 7 | Gland nut | Stainless Steel |
| 8 | Spring lock washer | Stainless Steel |
| 9 | Nut | Stainless Steel |
| 10 | Handle | Carbon steel |
| 11 | Compression | Brass |
| 12 | Compression ring | Brass |

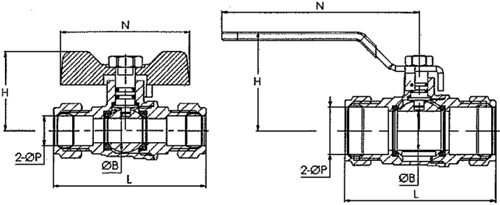

Dimensions
| DN | L | B | P | H | N |
| 12 | 62 | 10 | 12.15-12.25 | 32.4 | 52.5 |
| 15 | 69.7 | 14.5 | 15.15-15.25 | 46.8 | 83 |
| 22 | 81.7 | 19 | 22.15-22.25 | 50.3 | 83 |
| 28 | 88.7 | 23 | 28.15-28.25 | 58.3 | 116 |
Product Attributes
| Item: Ball Valve | Ball Material: Brass | ||||
| Size: 1/2" - 1" | Valve Basic Body Material: Brass | ||||
| Brass material: 59-1 | Surface Treatment: Nickle plate | ||||
| Connection Type: Female BSP x Female BSP | Application: water supply | ||||
| Handle Material: IRON / AL / Carbon steel | Max. Temp: +120°C | ||||
| Handle Type: Lever handle | Working Pressure: 0-1.6Mpa | ||||
| Stem Type: Fixed ball valve stem | Port: All, ningbo port is better | ||||
| Stem Material: Brass | Features: Full Port for Maximum Flow Rate | ||||
| Seat Material: PTFE | Standards: Parallel Pipe Thread to EN1254 | ||||
| Body Seal Material: NBR |
