SIZE: DN15-50(1/2''-2'')
Function Description
Used for water, non-causticity liquid appliance hook-up and other water supply pipe line applications.
Easy appliance hook-up F X F connections
Working Temperature: -20℃≤t≤100℃
Nominal Pressure: 1.6MPa
Thread: ISO228/NPT
Detailed Information

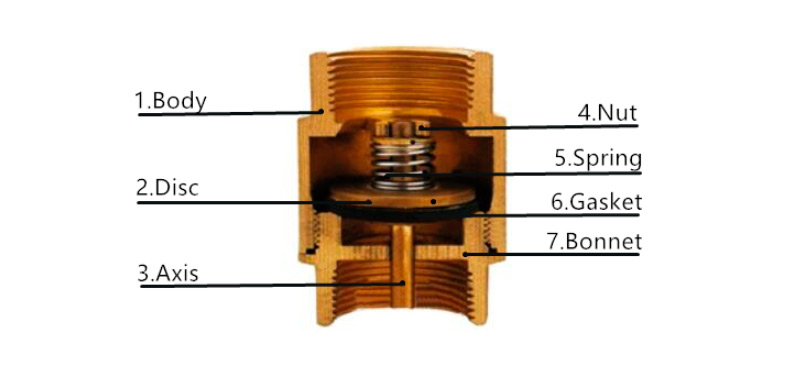

Product Description
| No. | Part Name | Material |
| 1 | Body | Brass |
| 2 | Disc | Brass |
| 3 | Axis | Brass |
| 4 | Nut | Brass |
| 5 | Spring | SS 3.4 |
| 6 | Gasket | NBR |
| 7 | Bonnet | Brass |

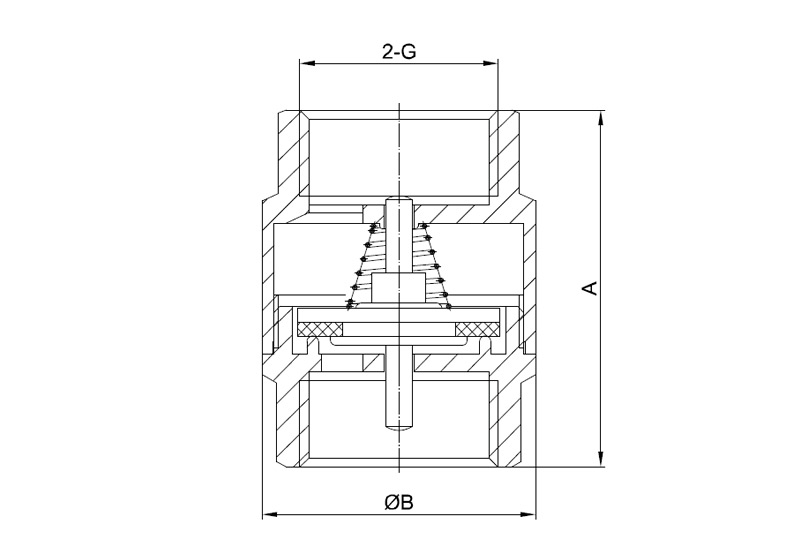

Dimensions
| DN | A | B | E |
| 10 | 43 | 30 | 3/8 |
| 15 | 49.5 | 35 | 1/2 |
| 20 | 53.5 | 41 | 3/4 |
| 25 | 60 | 49 | 1 |
| 32 | 70 | 58 | 1.25 |
| 40 | 77.5 | 67.5 | 1.5 |
| 50 | 84.5 | 83 | 2 |
Product Attributes
| Item: Ball Swing Check Valve | Material: Brass |
| Size: 1/2" - 1" | Surface Treatment: Copper color |
| Brass material: 59-1 or to be customized | Application: water supply |
| Connection Type: F*F or to be customized | Max. Temp: +100°C |
| Sealing Material: NBR | Working Pressure: 0-1.6Mpa |
