SIZE: DN15-50(1/2''-2'')
Function Description
Used for water, non-causticity liquid appliance hook-up and other water supply pipe line applications.
Easy appliance hook-up F X F connections
Working Temperature: -20℃≤t≤100℃
Nominal Pressure: 1.6MPa
Thread: ISO228/NPT
Detailed Information

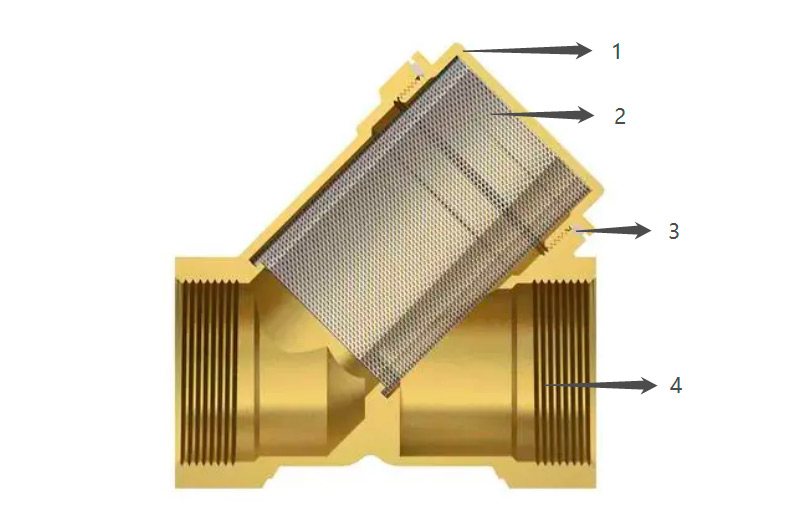

Product Description
| No. | Part Name | Material |
| 1 | End Cap | Brass |
| 2 | Filter | S.S.304 |
| 3 | Gasket | PTFE |
| 4 | Body | Brass |

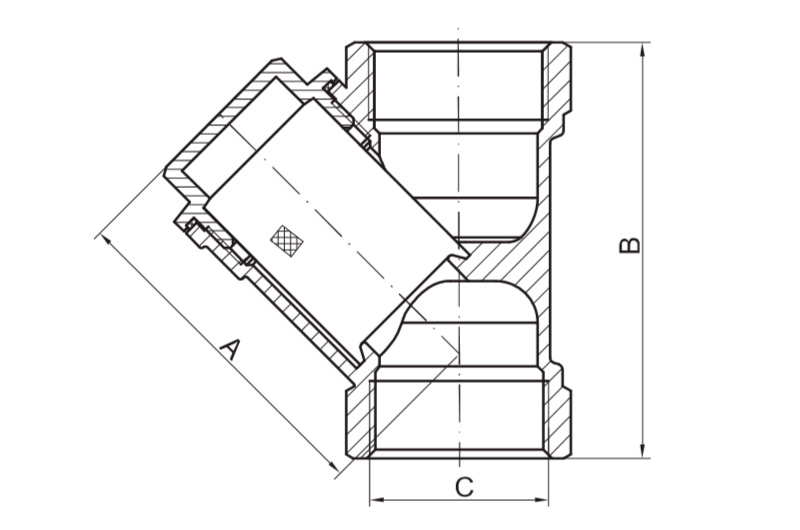

Dimensions
| DN | A | B | C |
| 15 | 43.5 | 54 | 1 1/2" |
| 20 | 51.4 | 62 | 3/4" |
| 25 | 61.3 | 75 | 1" |
| 32 | 72.5 | 88 | 1 1/4" |
| 40 | 80.5 | 100 | 1 1/2" |
| 50 | 100.5 | 120 | 2" |
Product Attributes
| Item: BRASS Y STRAINER | Material: Brass |
| Size: 1/2" - 1" | Surface Treatment: Sandblast |
| Brass material: 59-1 or to be customized | Application: water supply |
| Connection Type: F*F or to be customized | Max. Temp: +100°C |
| Sealing Material: NBR | Working Pressure: 0-1.6Mpa |
