Product Details:

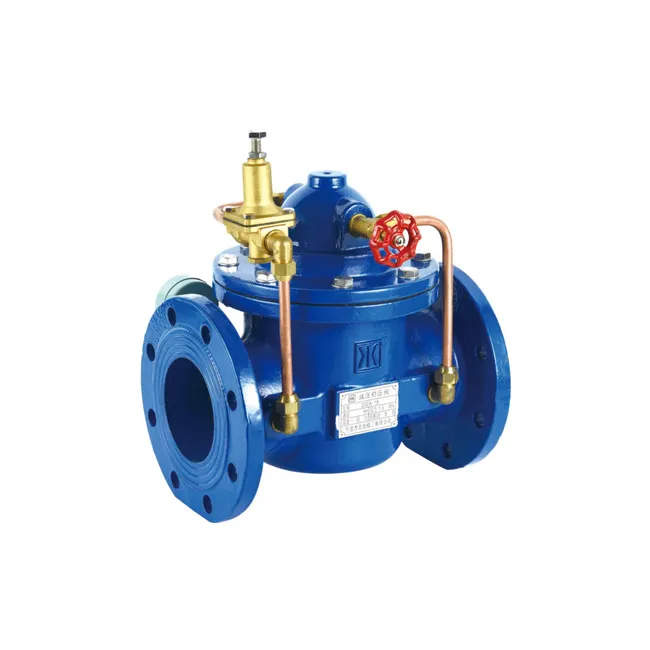

Model Number: 1602
SIZE: DN50-450(1 1/2''-18'')
Place of Origin: China
Brand Name: JKLONG/OEM
Payment & Shipping Terms:
Packaging Details: JKLONG standard packing
Delivery Time: to be confirmed
Payment Terms: L/C, D/A, D/P, T/T, OA
Supply Ability: 1000 pcs
Used for water, non-causticity liquid appliance hook-up and other water supply pipe line applications.
Flange connections
Working Temperature: 0℃≤t≤80℃
Nominal Pressure: 1.6MPa
Flange Standard: GB/T17241.6 RF, BS 4504, BS 5163, etc
Item: Y Strainer
Size: 1-1/2''-18''
Working Temp: 0℃≤t≤80℃
Working Pressure: PN16
Iron Grade: QT450, GGG40
Working Medium: Water
Flange Standard: GB/T17241.6 RF, BS 4504, BS 5163, etc
Rated Stroke: 90°

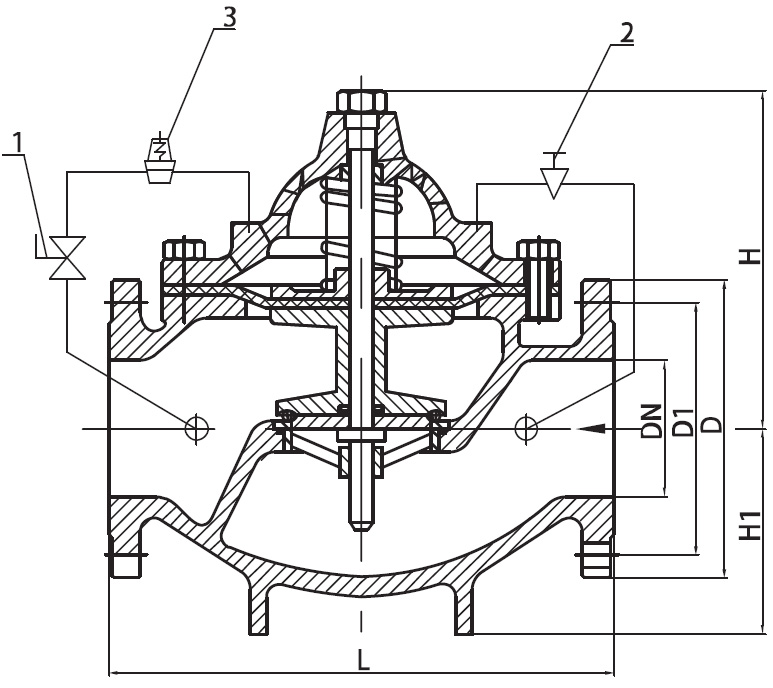

| No. | Part Name | Material |
| 1 | Ball Valve | Brass/Stainlee Steel |
| 2 | Pressure Reducing Valve | Brass/Stainlee Steel |
| 3 | Needle Valve | Brass/Stainlee Steel |
| DN | L | D | D1 | n-Ød | H | H1 |
| 40 | 230 | 150 | 110 | 4-19 | 220 | 130 |
| 50 | 230 | 165 | 125 | 4-19 | 220 | 130 |
| 65 | 235 | 185 | 145 | 4-19 | 265 | 170 |
| 80 | 250 | 200 | 160 | 8-19 | 265 | 170 |
| 100 | 285 | 220 | 180 | 8-19 | 300 | 180 |
| 125 | 330 | 250 | 210 | 8-19 | 340 | 220 |
| 150 | 362 | 285 | 240 | 8-23 | 405 | 220 |
| 200 | 435 | 340 | 295 | 12-23 | 460 | 270 |
| 250 | 505 | 405 | 355 | 12-28 | 500 | 290 |
| 300 | 520 | 460 | 410 | 12-28 | 640 | 320 |
| 350 | 645 | 520 | 470 | 16-28 | 860 | 325 |
| 400 | 720 | 580 | 525 | 16-31 | 950 | 750 |
| 450 | 720 | 640 | 585 | 20-31 | 1000 | 800 |
1. Professional fumigation-free plywood pallets for export.
