Product Details:

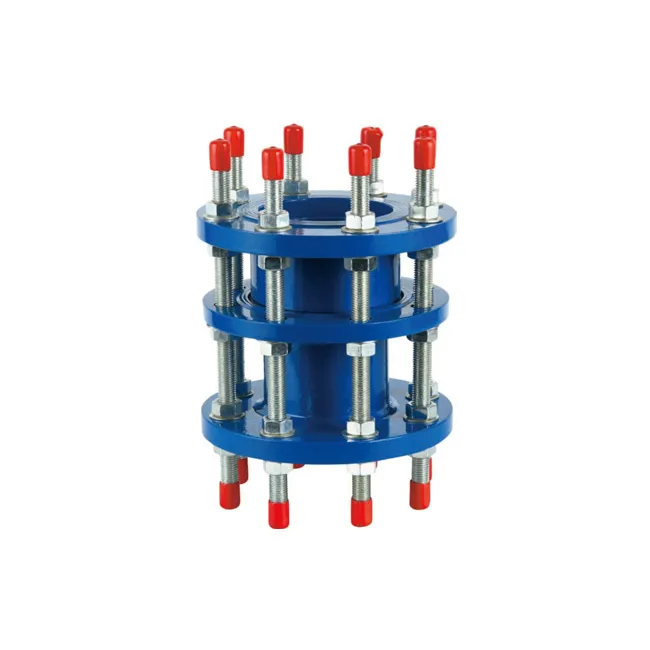

Model Number: 3804
SIZE: DN50-1600(2''-64'')
Place of Origin: China
Brand Name: JKLONG/OEM
Payment & Shipping Terms:
Packaging Details: JKLONG standard packing
Delivery Time: to be confirmed
Payment Terms: L/C, D/A, D/P, T/T, OA
Supply Ability: 1000 pcs
Used for water, non-causticity liquid appliance hook-up and other water supply pipe line applications.
Flange connections
Working Temperature: 0℃≤t≤80℃
Nominal Pressure: 1.6MPa
Flange Standard: GB/T17241.6 RF, BS 4504, BS 5163, etc.
Item: Y Strainer
Size: 2''-64''
Working Temp: 0℃≤t≤80℃
Working Pressure: PN16
Iron Grade: QT450, GGG40
Working Medium: Water
Flange Standard: GB/T17241.6 RF, BS 4504, BS 5163, etc
Rated Stroke: 90°
| No. | Part Name | Material |
| 1 | Flange | Carbon Steel |
| 2 | Bolt | Carbon Steel |
| 3 | Nut | Carbon Steel |

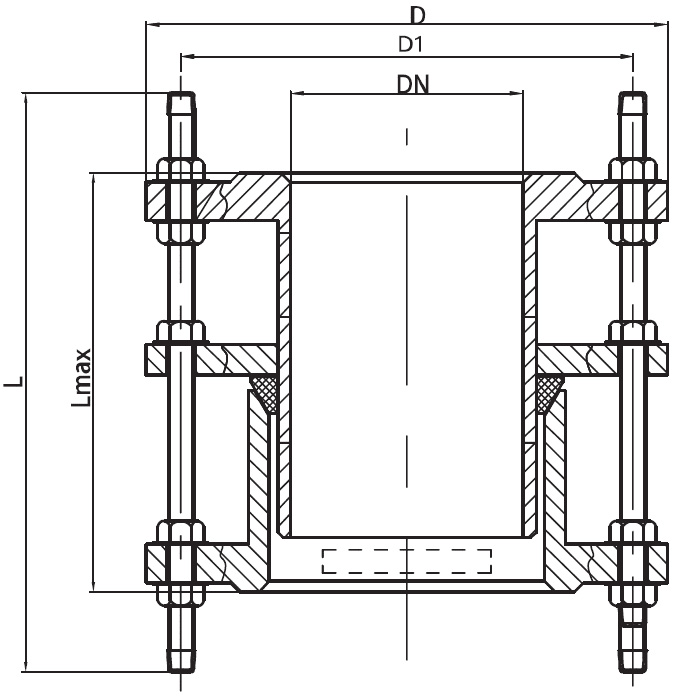

| DN | D | K | Lmax |
| 50 | 165 | 125 | 205 |
| 80 | 200 | 160 | 225 |
| 100 | 220 | 180 | 225 |
| 150 | 285 | 240 | 225 |
| 200 | 340 | 295 | 245 |
| 250 | 400 | 350 | 255 |
| 300 | 460 | 410 | 255 |
| 350 | 520 | 470 | 265 |
| 400 | 580 | 525 | 265 |
| 450 | 640 | 585 | 280 |
| 500 | 715 | 650 | 280 |
| 600 | 840 | 770 | 300 |
1. Professional fumigation-free plywood pallets for export.
