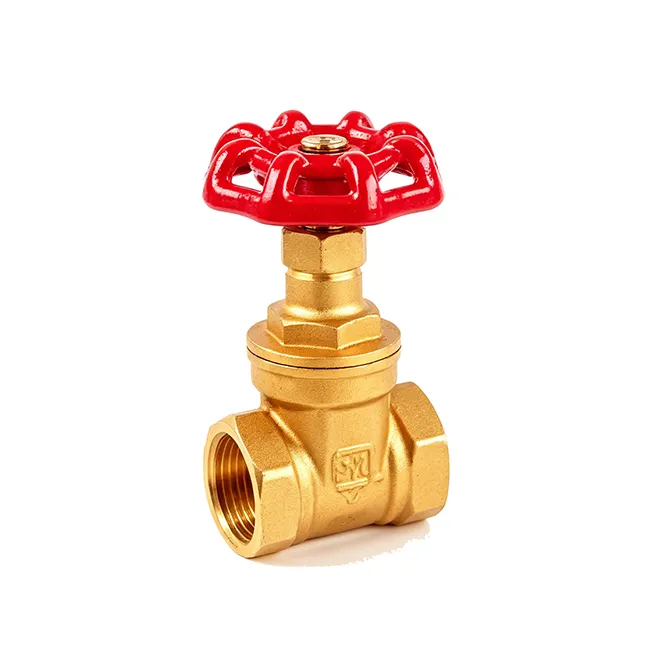

SIZE: DN15 (1/2")-DN100(4")
Function Description
Used for water, non-causticity liquid appliance hook-up and other water supply pipe line applications.
Easy appliance hook-up F X F connections
Working Temperature: -20℃≤t≤120℃
Nominal Pressure: 1.6MPa
Thread: ISO228/BSPP
Detailed Information
Product Description
| No. | Part Name | Material |
| 1 | Body | Brass |
| 2 | Wedge Disc | Brass |
| 3 | Stem | Brass |
| 4 | Bonnet | Brass |
| 5 | Gland nut | Brass |
| 6 | Handwheel | Cast Iron |
| 7 | Gasket | Brass |
| 8 | Packing | PTFE |
| 9 | O-ring | NBR |
| 10 | Gasket | PTFE |
| 11 | Name plate | Al alloy |

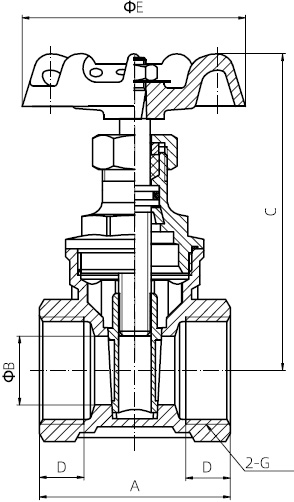

Dimensions
| DN | A | B | C | D | E |
| 15 | 43.5 | 15 | 75 | 10.5 | 54 |
| 20 | 49.5 | 20 | 83.6 | 11.5 | 54 |
| 25 | 54 | 25 | 99 | 13 | 60 |
| 32 | 59 | 32 | 113.5 | 13.5 | 72 |
| 40 | 62 | 40 | 125.5 | 14 | 72 |
| 50 | 69 | 50 | 152.5 | 16.5 | 80 |
Product Attributes
| Item: Gate Valve | Wedge Disc Material: Brass | |||||
| Size: 1/2"-4“ | Valve Basic Body Material: Brass | |||||
| Brass material: brass | Surface Treatment: Copper color | |||||
| Connection Type: Female BSP x Female BSP | Application: water supply | |||||
| Handle Material: IRON / AL / Carbon steel | Max. Temp: +120°C | |||||
| Handle Type: Handwheel | Working Pressure: 0-1.6Mpa | |||||
| Stem Type: non-rising stem | Port: All, ningbo port is better | |||||
| Stem Material: Brass | Features: Full Port for Maximum Flow Rate | |||||
| Seat Material: PTFE | Standards: Parallel Pipe Thread to ISO228 | |||||
| O-ring Material: NBR | ||||||
