SIZE: DN15(1/2")
Function Description
Used for water,non-causticity liquid appliance hook-up and other water supply pipe line applications.
Easy appliance hook-up F X F connections
Working Temperature:-20℃≤t≤120℃
Nominal Pressure: 1.6MPa
Thread: ISO228/BSPP
Detailed Information

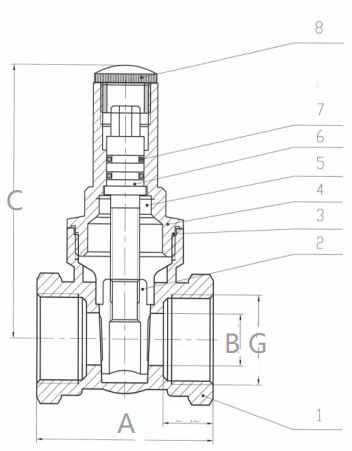

Product Description
| No. | Part Name | Material |
| 1 | Body | Brass |
| 2 | Wedge Disc | Brass |
| 3 | Gasket | PTFE |
| 4 | Bonnet | Brass |
| 5 | Gland nut | Brass |
| 6 | Stem | Brass |
| 7 | O-ring | EPDM |
| 8 | Nut | Brass |
Dimensions
| DN | A | B | C | G |
| 15 | 42.5 | 12 | 63 | G1/2 |
Product Attributes
| Item: Gate Valve | Wedge Disc Material: Brass | |||||
| Size: 1/2" | Valve Basic Body Material: Brass | |||||
| Brass material: brass | Surface Treatment: Copper color | |||||
| Connection Type: Female BSP x Female BSP | Application: water supply | |||||
| Handle Material: IRON / AL / Carbon steel | Max. Temp: +120°C | |||||
| Handle Type: Handwheel | Working Pressure: 0-1.6Mpa | |||||
| Stem Type: non-rising stem | Port: All, ningbo port is better | |||||
| Stem Material: Brass | Features: Full Port for Maximum Flow Rate | |||||
| Seat Material: PTFE | Standards: Parallel Pipe Thread to ISO228 | |||||
| O-ring Material: NBR | ||||||
