Product Details:
Model Number: R90202
Size: DN15-25(1/2''-1'')
Place of Origin: China
Brand Name: JKL
Certification: EN331, CE
Payment & Shipping Terms:
Packaging Details: JKLONG standard packing
Delivery Time: to be confirmed
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100,000 pcs

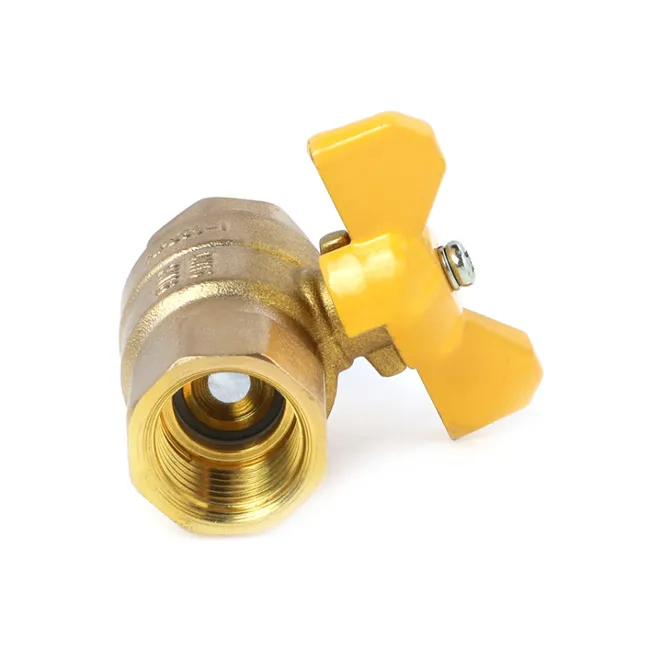

Item: Gas Ball Valve
Size: 1/2" - 1"
Working Temp: -20℃≤t≤60℃
Working Pressure: MOP5-20
Connection Type: Female X Femal Thread
Sealing Type: double O-rings
Handle Type: butterfly
Features: Full Port for Maximum Flow Rate
Thread Standards: ISO228/NPT
Brass Grade: HPb59-1/CW617N etc.
Working Medium: Natural Gas,LPG
Certification: EN331, CE
Opening/closing Test: 10,000times
Stem Material: Brass
O-ring Material: NBR
Seat Material: PTFE
Opening/closing Test: 10,000times
Handle Material: Carbon steel with chrome plating
| No. | Part Name | Material |
| 1 | Bonnet | Brass |
| 2 | Sealing Ring | PTFE |
| 3 | Ball | Brass |
| 4 | Body | Brass |
| 5 | Stem | Brass |
| 6 | O-ring | NBR |
| 7 | Gland nut | Carbon steel with chrome plating |
| 8 | Handle | Aluminum |
| DN | A | B | C | D | E |
| 15 | 52 | Ø12.5 | ISO228 1/2" | 36.5 | 52 |
| 20 | 60 | Ø15 | ISO228 3/4" | 37.8 | 52 |
| 25 | 70 | Ø20 | ISO228 1" | 49.8 | 65 |
1. JKL logo forged in valve body.
2. JKL logo stamped or printed on handle.
3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
4. PE plastic ECO bag.
5. Product spec. label sticked on the side of master carton.
6. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
7. Professional fumigation-free plywood pallets for export.
Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.
Q: What is your MOQ?
A: We have no MOQ for JKL brand stock.
Q: Can you accept OEM?
A: OEM is acceptable.
Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
