Product Details:
Model Number: R90502
Size: DN15
Place of Origin: China
Brand Name: JKL/OEM
Payment & Shipping Terms:
Packaging Details: JKLONG standard packing
Delivery Time: to be confirmed
Payment Terms: L/C, D/A, D/P, T/T, OA
Supply Ability: 100,000 pcs
Used for water,non-causticity liquid appliance hook-up and other water supply pipe line applications.
Easy appliance hook-up M X M connections
Working Temperature:-20℃≤t≤60℃
Nominal Pressure: MOP5
Parallel Pipe Thread to ISO228

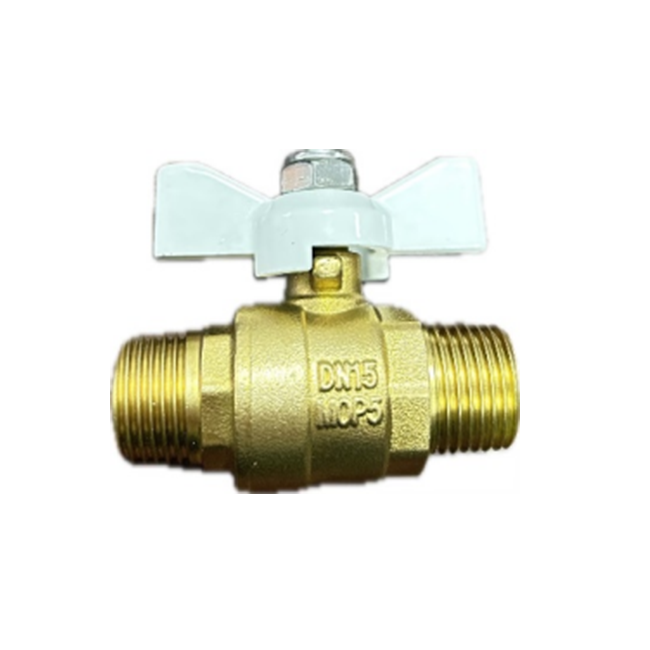

Item: Ball Valve
Size: 15mm
Working Temp: -20℃≤t≤60℃
Working Pressure: MOP5
Connection Type: Male X Male Thread
Sealing Type: Double O-Rings
Handle Type: Butterfly
Features:Full Port for Maximum Flow Rate
Nut: Stainless Steel
Brass Grade: CW617N/CW602N etc.
Working Medium: Water
Thread Standards: ISO228/BSP/NPT
Opening/closing Test: 10,000 times
Body Material: Brass
Ball Material: Brass
Packing Material: No
Opening/closing Test: 10,000 times
Handle Material: Cast Iron

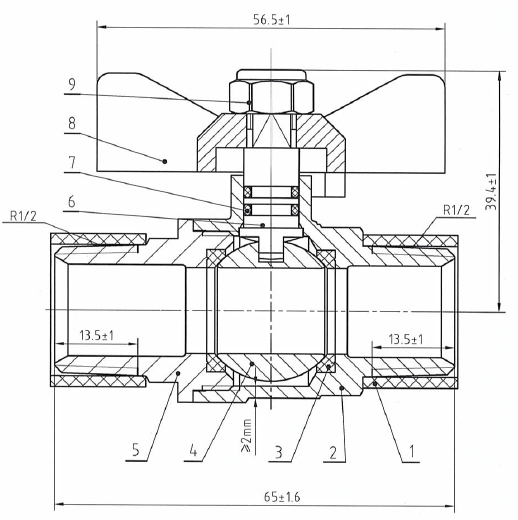

| No. | Part Name | Material |
| 1 | Thread Bush | Kraft Paper |
| 2 | Body | Brass |
| 3 | Sealing Ring | PTFE |
| 4 | Ball | Brass |
| 5 | Bonnet | Brass |
| 6 | Stem | Brass |
| SIZE | L | H | L1 | R |
| 15 | 57.5 | 39.4 | 56.5 | R 1/2 |
| Item: Ball Valve | Valve Bonnet Material: Brass |
| Size: 15mm | Valve Stem Material: Brass |
| Brass material: CW617N/CW602N | Surface Treatment: copper color |
| Connection Type: Male X Male | Application: Water supply |
| Handle Material: Cast Iron | Max. Temp: +60°C |
| Handle Type: Butterfly | Working Pressure: MOP5 |
| Stem Type: Blowout Proof | Port: All, Ningbo port is better |
| Body Material: Brass | Features: Full Port for Maximum Flow Rate |
| Opening/closing Test: 10,000times | Standards: Parallel Pipe Thread to ISO228 |
| Nut: Stainless Steel |
1. JKL logo forged in valve body.
2. JKL logo stamped or printed on handwheel.
3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
4. PE plastic ECO bag.
5. Product spec. label sticked on the side of master carton.
6. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
7. Professional fumigation-free plywood pallets for export.
Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.
Q: What is your MOQ?
A: We have no MOQ for JKL brand stock.
Q: Can you accept OEM?
A: OEM is acceptable.
Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
