Product Details:
Model Number: 5275
Size: DN15-50(1/2"-2")
Place of Origin: China
Brand Name: JKL/OEM
Payment & shipping Terms:
Packaging Details: JKLONG standard packing
Delivery Time: to be confirmed
Payment Terms: L/C, D/A, D/P, T/T, OA
Supply Ability: 100,000 pcs
Used for water,non-causticity liquid appliance hook-up and other water supply pipe line applications.
Easy appliance hook-up F X F connections
Working Temperature:-20℃≤t≤120℃
Nominal Pressure: 2.0MPa
Parallel Pipe Thread to ISO228

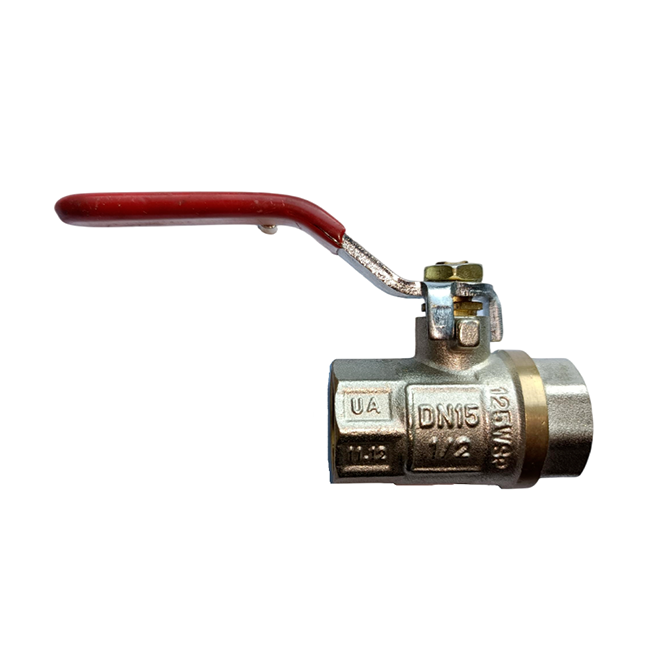

Item: Ball Valve
Size: 1/2" - 2"
Working Temp: -20℃≤t≤120℃
Working Pressure: PN20
Connection Type: Female NPT Thread
Sealing Type: O-Ring
Brass Grade: HPb58-2A/HPb59-1 etc.
Working Medium: Water
Thread Standards: ISO228/BSP/NPT
Opening/closing Test: 10,000 times
Stem Material: Brass
O-Ring Material: NBR

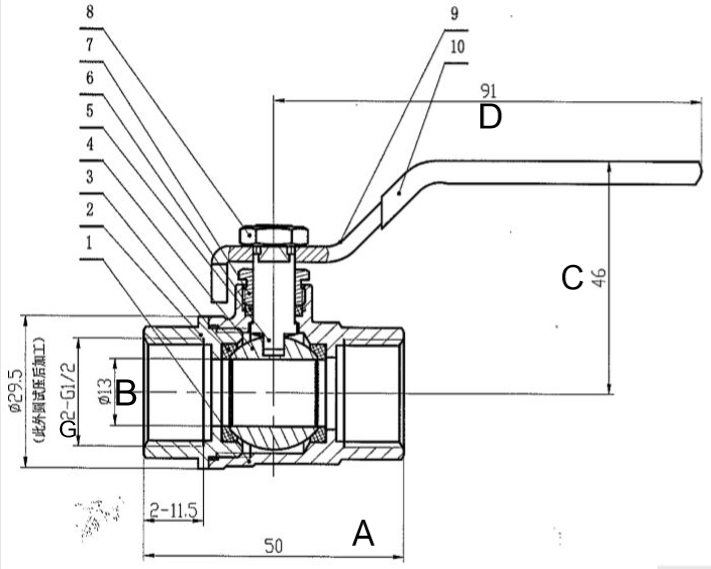

| No. | Part Name | Material |
| 1 | Body | Brass |
| 2 | Bonnet | Brass |
| 3 | Sealing ring | PTFE |
| 4 | Ball | Brass |
| 5 | Stem | Brass |
| 6 | Padding | PTFE |
| 7 | Nut | Brass |
| 8 | Nut | 4 class |
| 9 | Handle | Q235A |
| 10 | Handle cover | PTFE |
| DN | A | B | C | D | G | Weight/g |
| 15 | 50 | φ13 | 46 | 91 | 2-G1/2 | 197 |
| 20 | 54.5 | φ17 | 55.1 | 105.6 | 2-G3/4 | 257 |
| 25 | 65 | φ22 | 57.8 | 110 | 2-G1 | 382 |
| 32 | 78 | φ30 | 63.6 | 140.8 | 2-G1 1/4 | 625 |
| 40 | 91.5 | φ37 | 68.6 | 140.8 | 2-G1 1/2 | 960 |
| 50 | 100 | φ46.5 | 81.8 | 160.8 | 2-G2 | 1405 |
| Item: BALL VALVE | Weight: g |
| Size: 1/2"-2'' | Valve Basic Body Material: Brass(Nickel plating) |
| Brass material: HPb58-2A | Surface Treatment: Copper color |
| Connection Type: Female NPT Thread | Application: water |
| Working Pressure: 0-2.0Mpa | Max. Temp: +120°C |
| Port: All, ningbo port is better | Features: Full Port for Maximum Flow Rate |
| Body Sealing Material: PTFE | Standards: Parallel Pipe Thread to ISO228 |
1. JKL logo forged in valve body.
2. JKL logo stamped or printed on handwheel.
3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
4. PE plastic ECO bag.
5. Product spec. label sticked on the side of master carton.
6. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
7. Professional fumigation-free plywood pallets for export.
Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.
Q: What is your MOQ?
A: We have no MOQ for JKL brand stock.
Q: Can you accept OEM?
A: OEM is acceptable.
Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
