Product Details:
Model Number: 5295
Size Standard: ASME B16.51-2013
Certificate: NSF/UPC
Brand Name: JKL/OEM
Payment & Shipping Terms:
Packaging Details: JKLONG standard packing
Delivery Time: to be confirmed
Payment Terms: L/C, D/A, D/P, T/T, OA
Supply Ability: 100,000 pcs
Used for water
Easy appliance hook-up F X F connections
Working Temperature: -10℃≤t≤100℃
Nominal Pressure: 1.6MPa
PRESS-FIT: ASME B16.51
Item: BALL VALVE
Size: 1/2''
Working Temp: -20℃≤t≤110℃
Working Pressure: PN16
Connection Type: PRESS-FIT
Sealing Type: O-Ring
Brass Grade: C46500
Working Medium: Water
Thread Standards:
Opening/closing Test: 10,000 times
Stem Material: Brass
O-Ring Material: NBR

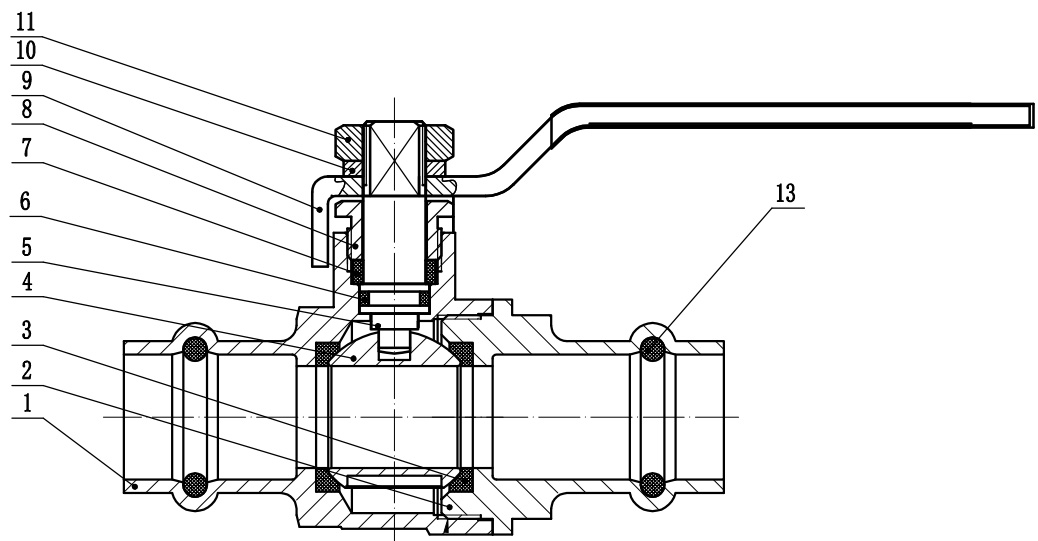

| NO | Part Name | Material |
| 1 | Body | Brass |
| 2 | Bonnet | Brass |
| 3 | Sealing Ring | Brass |
| 4 | Ball | Brass |
| 5 | Stem | Brass |
| 6 | O-ring | NBR |
| 7 | Packing Material | PTFE |
| 8 | Gland Screw | Brass |
| 9 | Handle | Q235A |
| 10 | Spring Washer | SS 304 |
| 11 | Nut | SS 304 |
| 12 | Handle Sleeve | PVC |
| 13 | O-ring | EPDM |
| Item: BALL VALVE | Surface treatment: to be customized |
| Size: 1/2"-2'' | Body Material: Brass |
| Brass material: C46500 | Weight: to be confirmed |
| Connection Type: PRESS-FIT | Application: Water |
| Working Pressure: 1.6Mpa | Max. Temp: 100°C |
| Port: All, ningbo port is better | Features: Full Port for Maximum Flow Rate |
1. JKL logo forged in valve body.
2. JKL logo stamped or printed on handwheel.
3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
4. PE plastic ECO bag.
5. Product spec. label sticked on the side of master carton.
6. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
7. Professional fumigation-free plywood pallets for export.
Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.
Q: What is your MOQ?
A: We have no MOQ for JKL brand stock.
Q: Can you accept OEM?
A: OEM is acceptable.
Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
