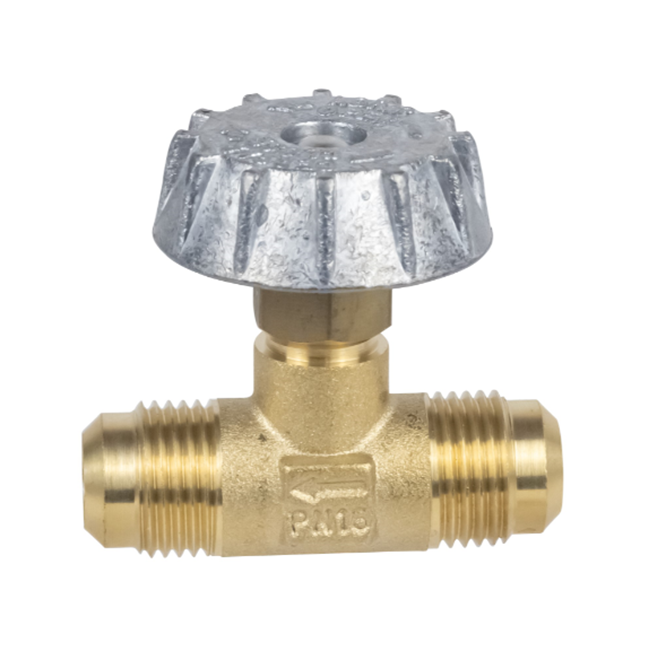

5351 Needle Valve

5351 NEEDLE VALVE

Product Details:

Model Number: 5351

Size: DN8(1/4")

Place of Origin: China

Brand Name: JKL/OEM

Payment & Shipping Terms:

Packaging Details: JKLONG standard packing

Delivery Time: to be confirmed

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 100,000 pcs

Detailed Information

Item: Gas Ball Valve

Size: 1/4" - 1"

Working Temp: -20℃≤t≤60℃

Working Pressure: MOP5-20

Connection Type: Female X Femal Thread

Sealing Type: double O-rings

Handle Type: butterfly

Features: Full Port for Maximum Flow Rate

Thread Standards: ISO228/NPT

Brass Grade: HPb59-1/CW617N etc

Working Medium: Natural Gas, LPG

Certification: EN331. CE

Opening/closing Test: 10,000 times

Stem Material: Brass

O-ring Material: NBR

Seat Material: PTFE

Opening/closing Test: 10,000 times

Handle Material: Carbon steel withchrome plating

Product Description

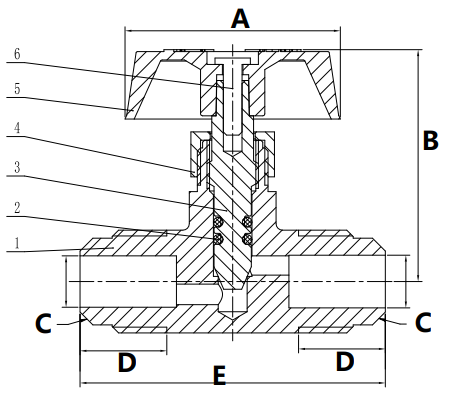

5351 needle valve product description

No.	Part Name	Material
1	Body	Brass
2	O-ring	NBR
3	Stem	Brass
4	Cap	Brass
5	Hand Wheel	YL112
6	Screw	SS304

Dimensions

DN	A	B	C	D	E
8	33.5	36.1	3/8 FLARE	13.5	47.5

Our Package Details

1. JKL logo forged in valve body.

2. JKL logo stamped or printed on handwheel.

3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.

4. PE plastic ECO bag.

5. Product spec. label sticked on the side of master carton.

6. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.

7. Professional fumigation-free plywood pallets for export.

5351 needle valve packaging

FAQ

Q: How long is your product guarantee period?

A: We have three-year guarantee and 24 hours full-time service.

Q: What is your MOQ?

A: We have no MOQ for JKL brand stock.

Q: Can you accept OEM?

A: OEM is acceptable.

Q: How long is your delivery time?

A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
