Product Details:
Model Number: 5557
Size: DN15(1/2")
Place of Origin: China
Brand Name: JKL/OEM
Payment & Shipping Terms:
Packaging Details: JKLONG standard packing
Delivery Time: to be confirmed
Payment Terms: L/C, D/A, D/P, T/T, OA
Supply Ability: 100.000 pcs
Used for water,non-causticity liquid appliance hook-up and other water supply pipe line applications.
Easy appliance hook-up F X F connections
Working Temperature:-20℃≤t≤120℃
Nominal Pressure: 1.6MPa
Parallel Pipe Thread to ISO228

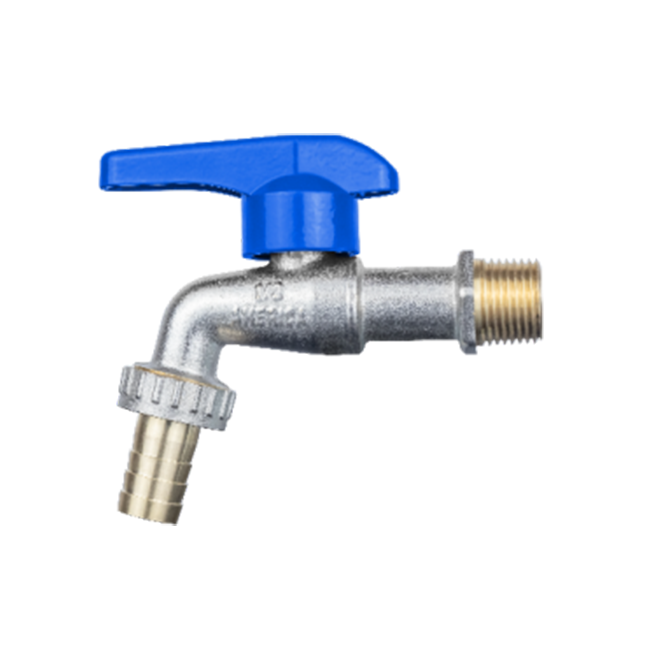

Item: Brass Bibcock
Size: 1/2"
Working Temp: -20℃≤t<120℃
Working Pressure: PN16
Connection Type: Male NPT Thread
Sealing Type: Double O-Rings
Handle Type: Lever
Features: Full Port for Maximum Flow Rate
Nut: Stainless Steel
Brass Grade: HPb58-2AHPb59-1 etc
Working Medium: Water
Thread Standards: ISO228/BSP/NPT
Opening/closing Test: 10.000 times
Stem Material: Fe
O-Ring Material: EPDM
Packing Material: PTFE
Opening/closing Test: 10.000 times
Handle Material: Aluminum alloy

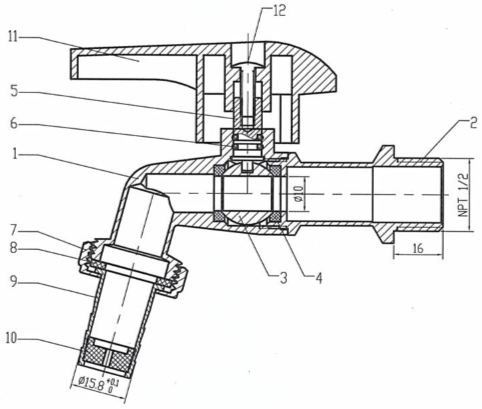

| No. | Part Name | Material |
| 1 | Body | Brass |
| 2 | Adaptor | Brass |
| 3 | Ball | Fe |
| 4 | Sealing Ring | PTFE |
| 5 | Stem | Fe |
| 6 | O-ring | EPDM |
| 7 | Gland nut | Brass |
| 8 | Handle | Aluminum alloy |
| 9 | Outlet nozzle | Brass |
| Item: Brass Bibcock | Ball Material: Fe |
| Size: 1/2" | Valve Basic Body Material: Brass |
| Brass material: HPb58-2A | Surface Treatment: Copper color |
| Connection Type: Male NPT | Application: water supply |
| Handle Material: IRON / AL / Carbon steel | Max. Temp: +120°C |
| Handle Type: Lever handle | Working Pressure: 0-1.6Mpa |
| Stem Type: Fixed ball valve stem | Port: All, ningbo port is better |
| Stem Material: Brass | Features: Full Port for Maximum Flow Rate |
| Seat Material: PTFE | Standards: Parallel Pipe Thread to ISO228 |
| Body Seal Material: PTFE |
1. JKL logo forged in valve body.
2. JKL logo stamped or printed on handwheel.
3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
4. PE plastic ECO bag.
5. Product spec. label sticked on the side of master carton.
6. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
7. Professional fumigation-free plywood pallets for export.
Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.
Q: What is your MOQ?
A: We have no MOQ for JKL brand stock.
Q: Can you accept OEM?
A: OEM is acceptable.
Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
