Product Details:
Model Number: 9119
Size: DN15-50(1/2''-2'')
Place of Origin: China
Brand Name: JKL/OEM
Payment & Shipping Terms:
Packaging Details: JKLONG standard packing
Delivery Time: to be confirmed
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100,000 pcs

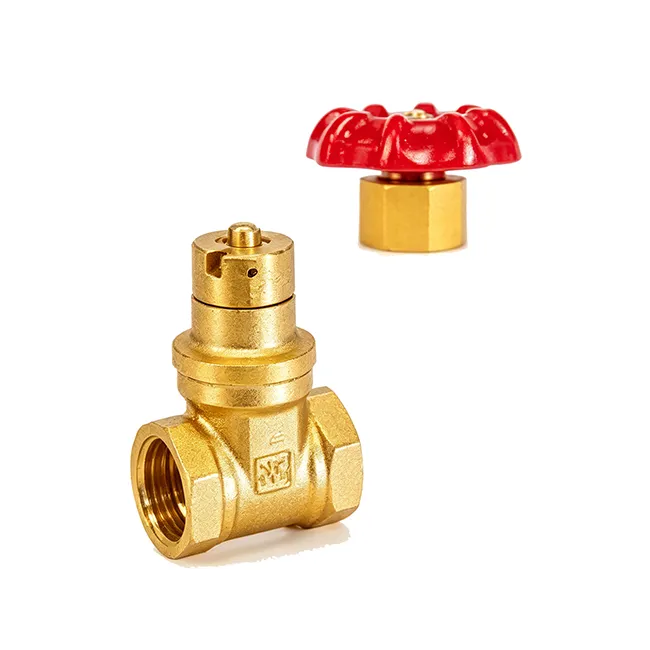

Item: Gate Valve
Size: 1/2" - 2"
Working Temp: -20℃≤t≤120℃
Working Pressure: PN16
Connection Type: Female X Femal Thread
Sealing Type: Packing
Handle Type: handwheel
Features: Full Port for Maximum Flow Rate
Nut: Stainless Steel
Brass Grade: HPb58-2A/CW617N etc.
Working Medium: water
Thread Standards: ISO228/NPT
Opening/closing Test: 10,000times
Stem Material: Brass
Dealing Material: PTFE
Packing Material: PTFE
Opening/closing Test: 10,000times
Handle Material: Ironl

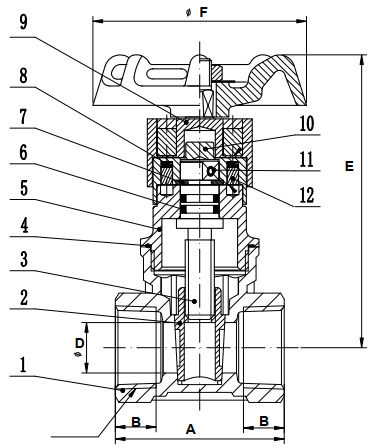

| No. | Part Name | Material |
| 1 | Body | Brass |
| 2 | Disc | Brass |
| 3 | Stem | Brass |
| 4 | Washer | PTFE |
| 5 | Cap | Brass |
| 6 | O-ring | NBR |
| 7 | Gasket | SS |
| 8 | Spring | Bronze |
| 9 | Key Set | Brass |
| 10 | Cover | Brass |
| 11 | Pin | Steel |
| 12 | Magnet | 38H |
| DN | A | B | C | D | E | F |
| 15 | 43.5 | 10.5 | BSP/NPT 1/2" | Ø13 | 75.5 | Ø54 |
| 20 | 47 | 11 | BSP/NPT 3/4" | Ø17 | 83.2 | Ø54 |
| 25 | 52 | 13 | BSP/NPT 1" | Ø21 | 90.2 | Ø54 |
| 32 | 57 | 13.5 | BSP/NPT 1 1/4" | Ø27 | 77.5 | / |
| 40 | 60 | 14 | BSP/NPT 1 1/2" | Ø34 | 90.3 | / |
| 50 | 67 | 15 | BSP/NPT 2" | Ø45 | 108.8 | / |
1. JKL logo forged in valve body.
2. JKL logo stamped or printed on handwheel.
3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
4. PE plastic ECO bag.
5. Product spec. label sticked on the side of master carton.
6. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
7. Professional fumigation-free plywood pallets for export.
Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.
Q: What is your MOQ?
A: We have no MOQ for JKL brand stock.
Q: Can you accept OEM?
A: OEM is acceptable.
Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
