SIZE: DN15-50(1/2''-2'')
Function Description
Used for water, non-causticity liquid appliance hook-up and other water supply pipe line applications.
Easy appliance hook-up F X F connections
Working Temperature: -20℃≤t≤120℃
Nominal Pressure: 1.6MPa
Thread: ISO228/NPT
Detailed Information

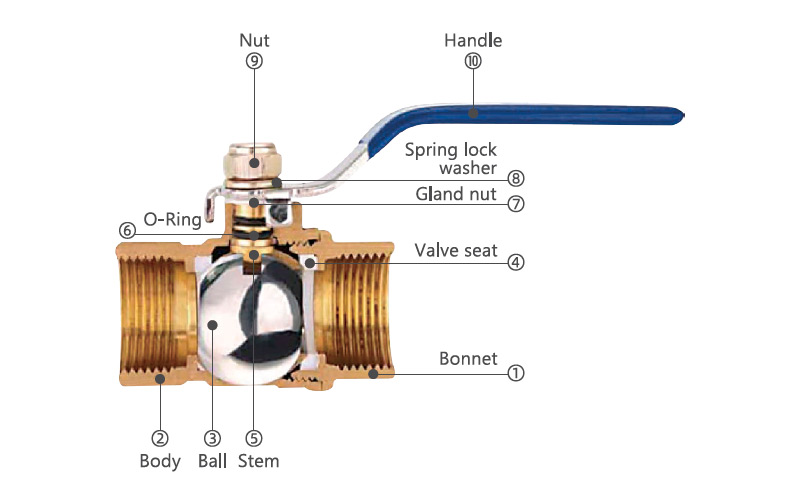

Product Description
| No. | Part Name | Material |
| 1 | Bonnet | Brass |
| 2 | Body | Brass |
| 3 | Ball | Brass |
| 4 | Valve seat | PTFE |
| 5 | Stem | Brass |
| 6 | O-ring | NBR |
| 7 | Gland nut | Stainless Steel |
| 8 | Spring lock washer | Stainless Steel |
| 9 | Nut | Stainless Steel |
| 10 | Handle | Carbon steel |

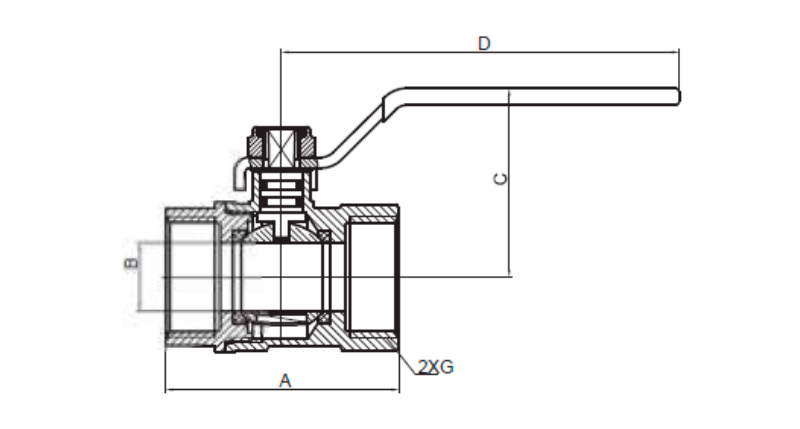

Dimensions
| DN | A | B | C | D | G |
| 15 | 50.5 | 13 | 38.7 | 90 | 1/2 |
| 20 | 54 | 15 | 40.3 | 90 | 3/4 |
| 25 | 64.5 | 19 | 52.3 | 110 | 1 |
| 32 | 74 | 24 | 56.5 | 140 | 1.25 |
| 40 | 84 | 30 | 61 | 140 | 1.5 |
| 50 | 100 | 37 | 69.5 | 155 | 2 |
Product Attributes
| Item: Ball Valve | Ball Material: Brass |
| Size: 1/2" - 1" | Valve Basic Body Material: Brass |
| Brass material: 59-1 | Surface Treatment: Copper color |
| Connection Type: Female BSP x Female BSP | Application: water supply |
| Handle Material: IRON / AL / Carbon steel | Max. Temp: +120°C |
| Handle Type: Lever handle | Working Pressure: 0-1.6Mpa |
| Stem Type: Fixed ball valve stem | Port: All, Ningbo port is better |
| Stem Material: Brass | Features: Full Port for Maximum Flow Rate |
| Seat Material: PTFE | Standards: Parallel Pipe Thread to ISO228 |
| Body Seal Material: NBR |
