Product Details:
Model Number: 5109A
Size: DN15-54
Place of Origin: China
Brand Name: JKL/OEM
Payment & Shipping Terms:
Packaging Details: JKLONG standard packing
Delivery Time: to be confirmed
Payment Terms: L/C, D/A, D/P, T/T, OA
Supply Ability: 100,000 pcs
Nominal Pressure: 1.6MPa
Working Temperature: -20℃≤t≤110℃
Working Medium: Water, Non-causticity Liquid
Compression type

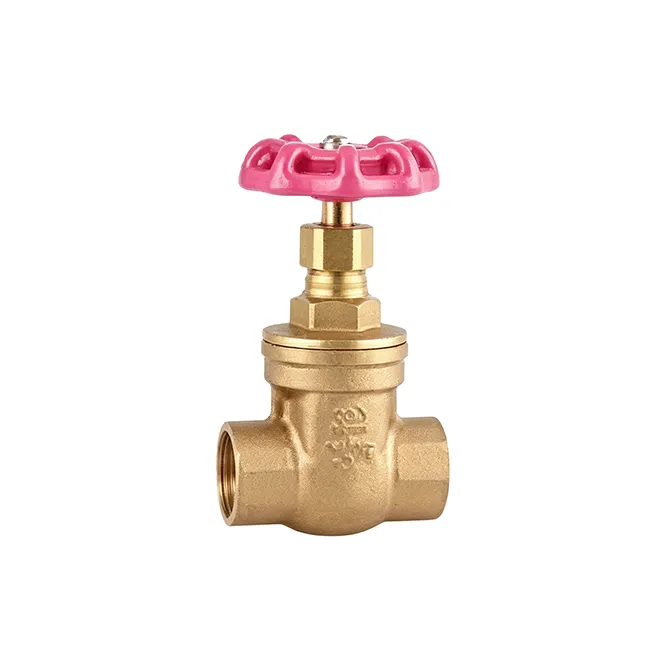

Item: Soldering Ends Brass Gate Valve
Size: 15mm-54mm
Working Temp: -20℃≤t≤110℃
Working Pressure: PN16
Connection Type: Soldering
Sealing Type: Packing
Handle Type: Handwheel
Features: Quick Installation
Nut: Brass
Brass Grade: CW617N/CW602N etc.
Working Medium: Water, Non-causticity Liquid
Soldering Ends
Opening/closing Test: 10,000times
Body Material: Brass
Wedge Material: Brass
Packing Material: PTFE
Opening/closing Test: 10,000times
Handle Material: Iron

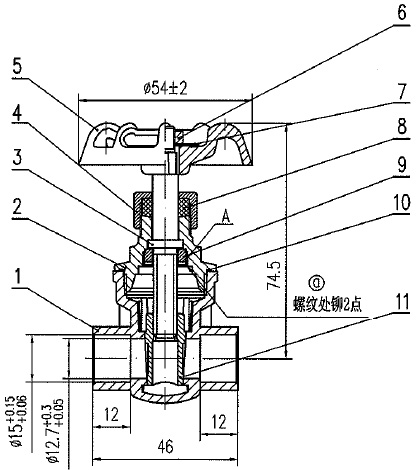

| No. | Part Name | Material |
| 1 | Body | Bronze |
| 2 | Bonnet | Brass |
| 3 | Stem | Brass |
| 4 | Gland | Brass |
| 5 | Handle | HT200 |
| 6 | Nut | Brass |
| SIZE | L | H |
| 15 | 46 | 74.5 |
| 22 | 57 | 86.2 |
| 28 | 63 | 96.1 |
| 35 | 75 | 118 |
| 42 | 86 | 126 |
| 54 | 98 | 153 |
| Item: Soldering Ends Brass Gate Valve | Valve Bonnet Material: Brass |
| Size: 15mm-54mm | Valve Stem Material: Brass |
| Brass material: CW617N/CW602N | Surface Treatment: Copper color |
| Connection Type: Soldering | Application: Water supply |
| Handle Material: Iron | Max. Temp: +110°C |
| Handle Type: Butterfly | Working Pressure: 0-1.6Mpa |
| Stem Type: Blowout Proof | Port: All, Ningbo port is better |
| Body Material: Bronze | Features: Quick Installation |
| Opening/closing Test: 10,000times | Standards: Soldering Ends |
| Nut: Brass |
1. JKL logo forged in valve body.
2. JKL logo stamped or printed on handwheel.
3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
4. PE plastic ECO bag.
5. Product spec. label sticked on the side of master carton.
6. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
7. Professional fumigation-free plywood pallets for export.
Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.
Q: What is your MOQ?
A: We have no MOQ for JKL brand stock.
Q: Can you accept OEM?
A: OEM is acceptable.
Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
