Product Details:
Model Number: 5117
Size: DN15-100(1/2''-4'')
Place of Origin: China
Brand Name: JKL/OEM
Payment & Shipping Terms:
Packaging Details: JKLONG standard packing
Delivery Time: to be confirmed
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100,000 pcs

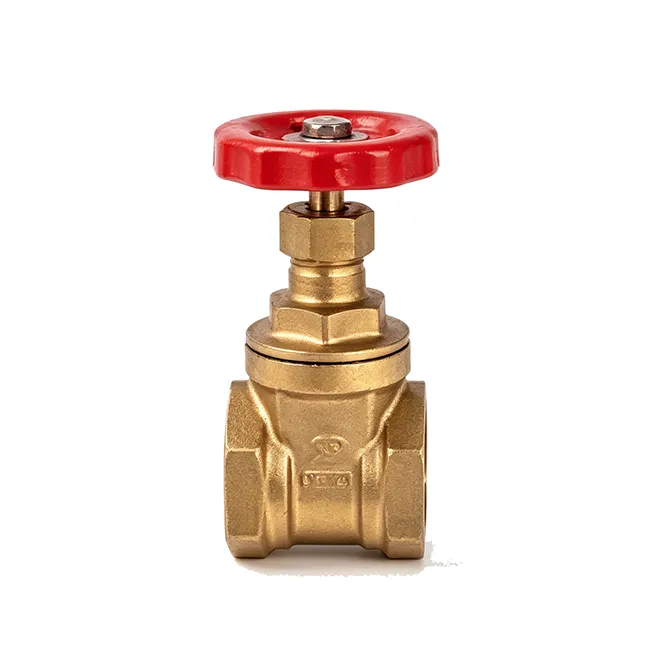

Item: Gate Valve
Size: 1/2" - 4"
Working Temp: -20℃≤t≤120℃
Working Pressure: PN16
Connection Type: Female X Femal Thread
Sealing Type: Packing
Handle Type: handwheel
Features: Full Port for Maximum Flow Rate
Nut: Stainless Steel
Brass Grade: HPb58-2A/CW617N etc.
Working Medium: water
Thread Standards: ISO228/NPT
Opening/closing Test: 10,000times
Stem Material: Brass
Dealing Material: Red Steel Paper
Packing Material: PTFE
Opening/closing Test: 10,000times
Handle Material: Carbon Steel

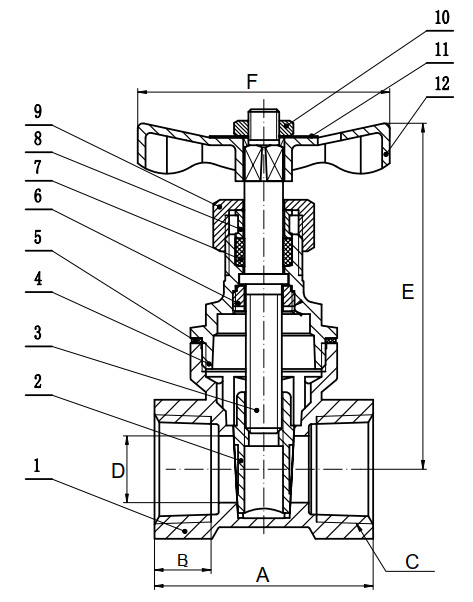

| No. | Part Name | Material |
| 1 | Body | Brass |
| 2 | Disc | Brass |
| 3 | Stem | Brass |
| 4 | Cap | Brass |
| 5 | Gasket | Red Steel Paper |
| 6 | Block Ring | Brass |
| 7 | Packing | PTFE |
| 8 | Packing Ring | Brass |
| 9 | Block Nut | Brass |
| 10 | Mut | Steel |
| 11 | Plate | Aluminum |
| 12 | Handwheel | Carbon Steel |
| DN | A | B | C | D | E | F |
| 15 | 42.5 | 11 | BSP/NPT 1/2" | Ø13 | 67.5 | Ø49 |
| 20 | 43.5 | 12.5 | BSP/NPT 3/4" | Ø15 | 69 | Ø49 |
| 25 | 49 | 15.5 | BSP/NPT 1" | Ø19 | 78 | Ø49 |
| 40 | 55.3 | 16 | BSP/NPT 1 1/2" | Ø33 | 103.5 | Ø59 |
| 50 | 56 | 14.5 | BSP/NPT 2" | Ø44.5 | 128.5 | Ø81 |
| 65 | 63.5 | 16 | BSP/NPT 2 1/2" | Ø58 | 174.5 | Ø100 |
| 80 | 72.5 | 18.2 | BSP/NPT 3" | Ø70 | 191.5 | Ø100 |
| 100 | 84 | 19 | BSP/NPT 4" | Ø91 | 232.5 | Ø120 |

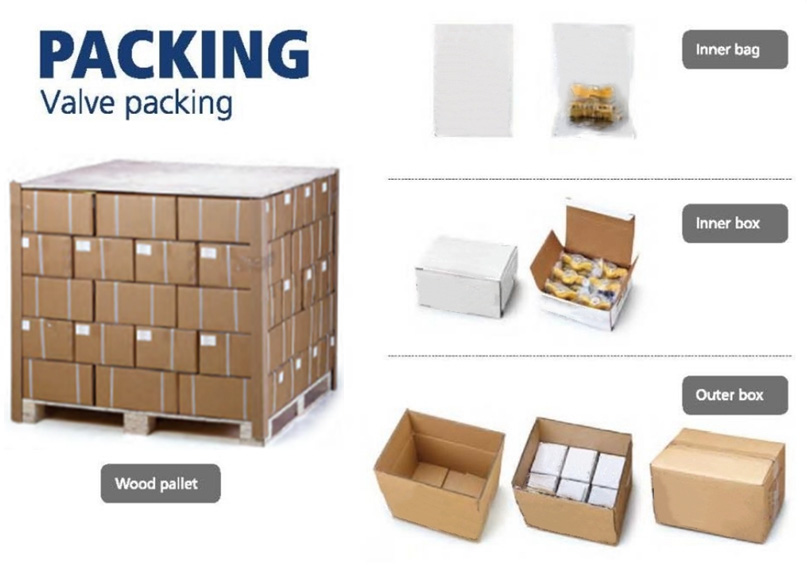

1. JKL logo forged in valve body.
2. JKL logo stamped or printed on handwheel.
3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
4. PE plastic ECO bag.
5. Product spec. label sticked on the side of master carton.
6. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
7. Professional fumigation-free plywood pallets for export.
Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.
Q: What is your MOQ?
A: We have no MOQ for JKL brand stock.
Q: Can you accept OEM?
A: OEM is acceptable.
Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
Professional Valve Design Team for Your Personalized Needs!
Email:
jkl@jtgroup.com.cnPhone:
+86 19975329386Address:
No.1 Chengxi Road, Cicheng, Ningbo, China
