Product Details:
Model Number: 5365
Size: DN6(1/8")
Place of Origin: China
Brand Name: JKL/OEM
Payment & Shipping Terms:
Packaging Details: JKLONG standard packing
Delivery Time: to be confirmed
Payment Terms: L/C, D/A, D/P, T/T, OA
Supply Ability: 100.000 pcs
Used for Liquefied petroleum gas
Easy appliance hook-up F X F connections
Working Temperature:-20℃≤t≤120℃
Nominal Pressure: 0.6MPa
Parallel Pipe Thread to ISO228

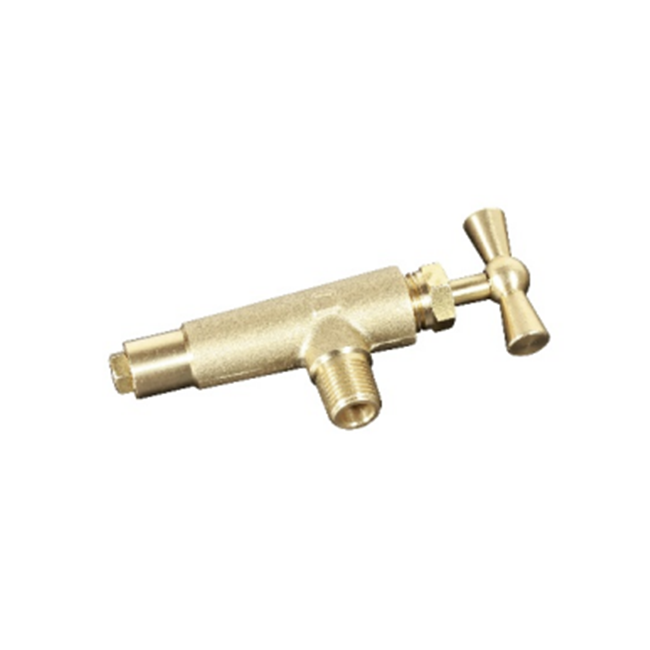

Item: Needle Valve
Size: 1/8"
Working Temp: -20℃≤t≤120℃
Working Pressure: PN6
Connection Type: Female NPT Thread
Sealing Type: O-Ring
Brass Grade: HPb58-2A/HPb59-1 etc.
Working Medium: Liquefied petroleum gas
Thread Standards: ISO228/BSP/NPT
Opening/closing Test: 10,000 times
Stem Material: Brass
O-Ring Material: NBR

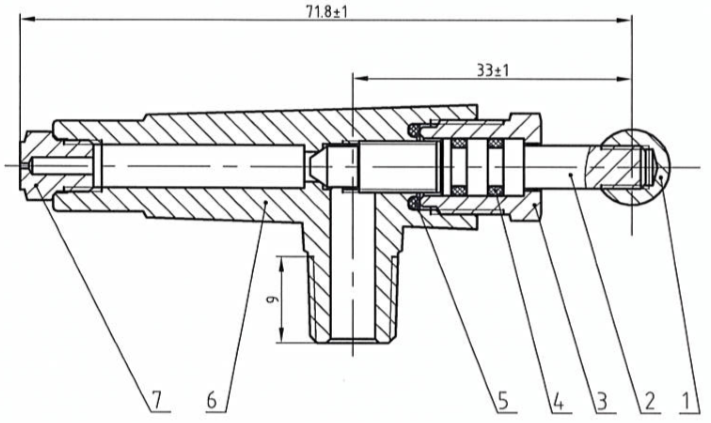

| No. | Part Name | Material |
| 1 | Handle | Brass |
| 2 | Core | Brass |
| 3 | Gland nut | Brass |
| 4 | O-ring | NBR |
| 5 | O-ring | NBR |
| 6 | Body | Brass |
| 7 | Nut | Brass |
| Item: GAS VALVE | Weight: 70g |
| Size: 1/4" | Valve Basic Body Material: Brass |
| Brass material: HPb58-2A | Surface Treatment: Copper color |
| Connection Type: Female NPT Thread | Application: Liquefied petroleum gas |
| Working Pressure: 0-1.6Mpa | Max. Temp: +120°C |
| Port: All, ningbo port is better | Features: Full Port for Maximum Flow Rate |
| Body Seal Material: PTFE | Standards: Parallel Pipe Thread to ISO228 |
1. JKL logo forged in valve body.
2. JKL logo stamped or printed on handwheel.
3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
4. PE plastic ECO bag.
5. Product spec. label sticked on the side of master carton.
6. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
7. Professional fumigation-free plywood pallets for export.
Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.
Q: What is your MOQ?
A: We have no MOQ for JKL brand stock.
Q: Can you accept OEM?
A: OEM is acceptable.
Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
